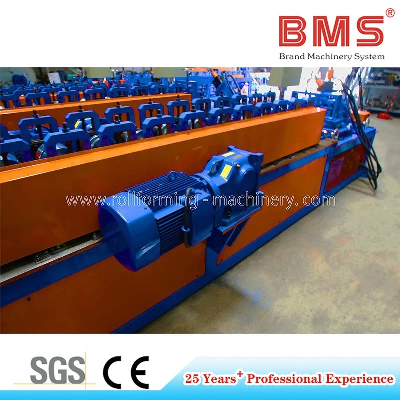

Stud and Track Punching and Cutting Roll Forming Machine

Stud and Track Punching and Cutting Roll Forming MachineProduct DescriptionHigh Speed CU Stud And Track Punching+ Cutting Roll Forming Machine         Material                                            Effective width:About 72 mm  Material Thickness:0.3-0.6mm                                   Applicable material:Galvanized Steel(GI)With yield strength G235-390MpaWork FollowDecoiler→Feeding Guide Device→Rolling Forming System→Hydraulic Not Stop Cutting And Punching Device→ Exit RackMachine ComponentsManual Decoiler:One SetUn-powered, Manually control steel coil inner bore shrinkage and stopMax Feeding width: 500mm,coil ID range ф460-520mmCapacity:Max 2 Tons                    Feeding Guide DeviceThe feeding guide device at the main entrance of the machine during work,Raw materials on both sides of the plate the enter into the machine by the guiding device,make the raw materials and roll forming system to maintain the correct position.The guiding position can be adjusted by the manual screw mechanism,and the feeding guide width can be adjusted independently                   Rolling Forming System             Forming mold: Cr12MoV molding steel, through vacuum quenching heat treatment to HRC60-62 °then grinding the inner Hole and the end face. The precision machining roller surface with CNC latheShafts material:Cr12 steel,CNC lathes,Heat Treatment,hard Chrome CoatedWith thickness 0.04mm,surface with mirror treatment(for longer life and anti-rust)Main motor and 14 reducers combination driving,about 14-step to form           Main Motor =5.5KW,Frequency speed control          Hydraulic Cutting And Punching DeviceCutter stype:Not stop cutting and punching The length of tolerance:±1.0mm(3m)Cutter motor:HydraulicHydraulic Motor:4KWServo motor power:1.5 KW                          Operation PanelControl The Quantity And Cutting Length AutomaticallyInput The Production Data(Production Batch,pcs,Length,etc.)On The Touch Screen ,It Can Finish The Production Automatically.Combined With: PLC, Inverter, 10 Inch Touch Screen, Encoder, etcPLC Control SystemControl The Quantity And Cutting Length AutomaticallyInput The Production Data(Production Batch,pcs,Length,etc.)On The Touch Screen ,It Can Finish The Production Automatically.Combined WithPLC, Inverter, Touch Screen, Encoder, etcPLCSiemens (German brand)/Schneider(French brand)InverterSiemens (German brand)/Schneider(French brand)7-Inch Color Touch ScreenSiemens (German brand)/Schneider(French brand)EncoderOmron (Japan brand)Switch Bottom, Indicate Light, Power Supply, Intermediate Relay, AC ContactorThermal RelaySiemens(German brand)/Schneider(French brand)Air SwitchLG-LS(Korea brand)Cut-to-Length Tolerance≤±1 mmControl Voltage 24VAfter-Sale Service1. The warranty is 24 months after the client receives the machine.Within The 24months, we will courier the replacement parts to the client free of charge2.We offer technical support for the entire life of our machines3. We can send our technicians to install and train the workers in the clients' factories with extra costTerms Of TradeMinimum order quantity (MOQ)1 SetDelivery timeabout 45 workdaysPort of loadingport of XiamenType of paymentby T/T or by L/CExportto more than 80 countries and regions, including South Korea,Taiwan, UK, Ireland, Greece, Australia, USA, Mexico, Brazil, Russia,Saudi Arabia, UAE, Iran , India, Singapore, Malaysia, Thailand,Indonesia, Philippines, Vietnam, South Africa, Nigeria, Egypt, etcPacking StylePacking methodMain body of machine is naked and covered by plastic film(to protect of dust and corrosion),loaded into container and steadily fixed in container suitable by steel rope and lock, suitable for long-distance transportation. View more products,click here...Company Profile/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
