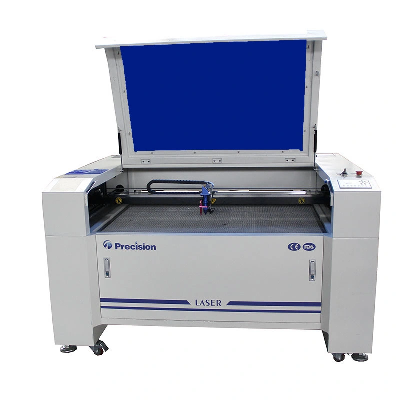

CO2 Laser Cutting Machine Laser Engraving Machine 1390

Co2 laser cutting machine Laser Engraving Machine 1390  Detailed parts   Introduction of machine cabient 1.Adopt the frame structure to weld the plates and sections into a whole, high welding strength and goodanti-seismic performance;2.All the plates and sections are made of galvanized products to prevent moist and rust during wetconditions, especially at sea.3.Galvanized sheet welding difficult, long working hours, expensive materials, manufacturing costs higherthan ordinary steel;4.Worktable thickening, high strength and the use of the entire board to ensure the installation of flatness; 5.The support part of the machine's bottom welded ribs plate to ensure support strength;6.It is easy to move and reliable to support with the use of universal wheel and foot support.7.The bottom of the machine welded ribs, and the gap between the ground large enough, hydraulic lift truckcan easily enter from below to facilitate loading and unloading Reci laser tube   Control box     RD controller     HIWIN rails   1.     Maintenance free-No need for frequent periodic lubrication or automatic lubrication systems.2.     Long service life, long-term automatic maintenance of the track surface lubricating film protection.3.     Curtailing lubrication cost.4.     No oil leakage concern, easy for cleaning.       Standard Configuration   (1)Working area is :1300*900 mm (2)Reci W2 (80-100w) Laser tube Reci W4 (100-130w) Laser tube Reci W6 (130-150w) Laser tube Reci W8 (150-180w) Laser tube (3) RDC6442/6445 control system (4)YAKO stepper motor YKD3505M-DK-B1 and driver YK368-826G(you can also choose Leadshine 573S15-L motor and 3DM580 driver)(5) HIWIN square rail (6)American 26 Mirrors :Three Reflection mirror and one focus lens  (7)Blade table ( Alternative Honeycomb table )(8)Shanghai Fulo belt (9)Water pump or S&A Industrial Water Chiller CW3000 CW5000 CW5200(10)Red light point(11)Water protection switch(12)Open cover protection (the machine will stop working when open cover) (13) Exhaust Fan 550w  (14)Air Pump (15)Galvanized sheet machine frame which is damp-proof and anti-rust (16)All acrylic cover (you can see machine working clearly) (17)Tool box   MAIN FEATURES:   # Available to nonmetal material# With auto and DSP following up system to ensure high accuracy.Offline control system can not only work without computer, also connect to USB.# Ruida 6442 control panel in English,Portugese,French,Turkey,German, convenience of operation control.# With RECI laser tube,long lifetime more than 10000 hours.# Honey comb working tableBlade working table for laser cutting. Which  meet the need of diversified laser procession.#Import HIWIN guide rail with high engraving precision.# Imported Singapore lens and Morris, with good quality and ability of reflection and focusing, long working life.#Red light position system realize the exact position and frame of machine is stable, ensure the precision.   Technical parameters of 1390 laser cutting machine   Packing size1840*1340*1300mmLaser tubeco2Laser TubeRECI laser tube Or EFR laser tubeControlling systemNewest DSP control systemFunctionCut/ Scan/ EngraveTable surfaceBlade table/Honeycomb tableOptical systemAmerican26 lens and mirrorsProtection systemWater protection switchCutting speed0~24000mm/minEngraving speed0~60000mm/minResolution ratio4000dpiGraphic format supportedBMP, PLT, DST, DXF, AI, GIF, PCS, TGASoftware supportedCorelDraw, Photoshop, AutoCAD, TAJIMAPower supplyAC220V/50/60Hz or AC110V/50/60HzApplicable materialAcrylic, crystal, glass, ceramic, marble, cloth, fabric, wood etc.X,Y TravelingPositioning accuracy ±0.01/300mmX,Y Repositioning positioning accuracy±0.01mmTransmissionFulong belt transmissionRailTaiwan ABBA/Hiwin railsMotorsServo/Stepper motorsDriversYako Max powerAbout 1kwMax working speed24000mm/minInterfaceUSB Offline and WIFI     Applicable materialswood,bamboo, jade, marble, organic glass, crystal, plastic, garments, paper, leather,rubber,ceramic,towers, glass and other nonmetal materials.   Applicable industriesadvertisement, arts and crafts, leather, toys, garments, model , building upholster,computerized embroidery and  clipping,jeans, packaging and paper industry.   Packing and shippingPackage and shipment of 1325 laser cutting machine              # Delivery period: 7-15 working days after getting the deposit # Package method: water-proof plastic film for inner package, standard plywood case for outer package # shipping method: by sea # we have ship forward to help us transport the machine    Service of laser cutting machine# warranty: 12 month period, in the case of part damage (excluding human-damage),the part shall be replaced free of charge. Out of the warranty, all parts can be replaced with agent price.  # all machine have strict inner quality control in the whole process of the machine production# CE certificates # have 2 skillful service teams, 24 hour online to service you, once there is a question from the customer,they can give feedback by email
