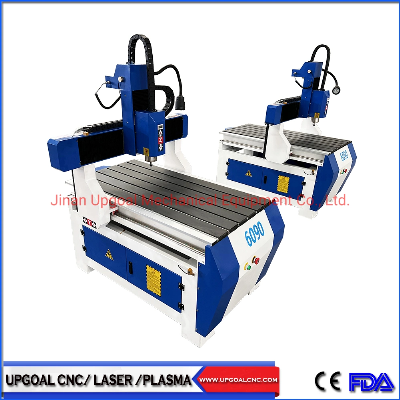

Hot Sale Small Woodworking Advertising CNC Engraving Router Machine 600*900mm

Hot Sale Small Woodworking Advertising CNC Engraving Router Machine 600*900mm Features1.Cast iron lathe bed. Stable Running with less Vibration.2.With Gantry moving type, stable and durable for long time using. Ensure high positioning accuracy.3.XYZ three axis are with linear square guide rail, Hiwin, Taiwan. Ball screws transmission for all axis. Durable running with Higher accuracy.4.Optional 1.5KW/2.2KW/ 3.2kw water cooling spindle which is applicable not only for cooper plate, aluminum plate, iron plate engraving but also for wood working. It can cut 20-30mm thickness acrylic by one time cutting. The fine engraving is more smoothly and clear by large power spindle.Spindle with digital thermometer, convenient for spindle temperature monitoring during working. 5.Dust-Proof design for XZ-axis, protect the guide rail and ball screws from the Dust&Dirt, help to ensure machine working performance.6.Thick strong aluminum alloy T slot working table.7.Optional DSP offline or Mach3 control system or PCI NcStuido controller 8. China powerful 86BYGH450A stepper motor and Leadshine stepper driver DMA860H for XYZ-axis, faster speed and high precision working, and not easy to loss steps.9.Rationalized placement of the electronic parts. Optimized heat dissipation effect. Adopt high quality electronic parts, minimizing fault rate, Adopt high flexible cable and imported electronic parts, electrical design of whole machine is complied with the CE standard.10. Auto tools calibration for Z-axis ,and has Led light for night working, more convenient.11.With the function of break-point memory,power failure resuming and automatic home/origin correction function.The Working can be resumed after unexpected situations or next day.effectively ensure long time working precision.12.Working Pause, Speed adjust, Working depth adjust at any time while working. Preview the 2D&3D working result With simulation function. Variable Speed is suitable for various materials and industry.13. Favorable compatibility with various CAM softwares such as Type3/Artcam/Mastercam/Caxa. With intelligent over limit protection function which can stop the mechanical collision due to unproper size given to the design.Technical Parameters Effective working area600(X)mm*900Y)mm*150(Z)mmMaterialsSquare steel tube machine holder, cast iron machine bed, cast aluminum gantryWorking tableThick strong Aluminum alloy T Slot with PVC protection layerMoving typeGantry movingGuide railLinear square guide rail, Hiwin, Taiwan, diameter 20mm for XYZ-axisTransmissionLead ball screw for XYZ-axisDriving modeStepper motor and driver for XYZ-axisSpindle motor1.5KW/2.2KW /3.2kw water coolingSpindle speed0-24000rpmInverterSunfarVoltageAC 220V±10%, 50/60Hz, sinle phase orAC 380V±10%, 50/60Hz, three phases Traveling speed>8000mm/minEngraving speed>6000mm/minMachine accuracy0.03mmControl systemDSP offline or Mach3 controller or PCI NcStudio Suitable softwareArtcam, Type3, Ucancam V9,etcCarving InstructionsG code *Uoo *mmg *plt HPGLRunning environment temperature0-45 ºCRelative humidity30%-75%Tool calibrationAutoCertificateCEApplicationIndustry application: Wood work, Advertising Sign&Mark, Acrylic Cutting, Advertising plate, Led Lamp.Applicable material: Wood, Aluminum sheet, aluminum composite panel, dual-color plate, Mdf, Cristal plate, artifical marble and other metal and non-metal materials.Working Method: 3D embossment engraving, 2D engraing and Cutting, Bottom Milling.Reference Sample PhotosReference Working Videoshttps://youtu.be/2i0SYYXtq9Yhttps://youtu.be/nRS92o0qPbQAccessories & packing   For more information, just feel free to contact us!     Jinan Upgoal Mechanical Equipment Co.,Ltd      CNC Router/Laser Engraving Cutting Marking Welding Machine/Plasma Cutting Machine  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
