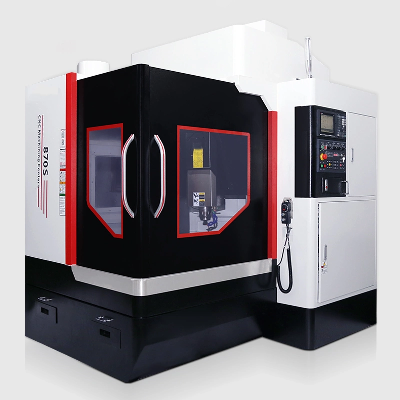

Wt-650 Small CNC Metal Engraving and Milling Machine

650 Gantry Type Heavy Cutting High Displacement CNC Engraving  Milling Machine for Metal Embossing Mold Making  Product Description CNC Engraving And Milling Machine For Steel Metal Cutting Embossing Mold Is A Tool Machine Center Which can be engraved or milled. On the basis of the engraving machine, the power of the main shaft and the servo motor is increased, the bearing capacity of the bed is increased, and the high speed of the main shaft is maintained, and more importantly, the precision is high. The engraving and milling machine is also developing towards high speed, which is generally called high-speed machine. It has stronger cutting ability and very high machining accuracy. It can also directly process materials with a hardness above HRC60 and form it at one time. It is widly used in Metal Copper Aluminum Precision Milling And Engraving.Product ParamentersItemUnitT-540T-650T-760T-870T-1080X-axis travelmm4006006008001000Y-axis travelmm500600700700800Z-axis travelmm200260280350500Spindle nose to tablemm50-22050-31030-29070-47070-470Three-axis guide width X/Y:30 Z:25X/Y:30 Z:25X/Y/Z:30X/Y/Z:MSA35X/Y/Z:MSA35Table sizemm500*400600*600600*700800*800800*1000T-slotmm6*16*906*16*906*16*907*18*1009*18*100Max load capabilitykg250300300400400Standard spindle Motorized spindleMotorized spindleMotorized spindleMotorized spindleMotorized spindleSpindle speedrpm3000-240003000-240003000-240003000-240003000-24000Spindle powerkw3335.55.5Spindle taper ER25/BT30ER25/BT30ER25/BT30ER25/BT30ER25/BT30Maximum cutting feed rate(X/Y/Z)mm/min80008000800080008000Rapid speed(X/Y/Z)m/minX/Y/Z:15X/Y/Z:15X/Y/Z:15X/Y/Z:24X/Y/ Z:24Ball screw diameter/pitchmmX/Y/Z:32/5X/Y/Z:32/5X/Y/Z:32/5X/Y:40/6 Z:32/5X/Y:40/6 Z:32/5Positioning accuracymm±0.005/300±0.005/300±0.005/300±0.005/300±0.005/300Repeatabilitymm±0.003±0.003±0.003±0.003±0.003Air pressurekgf/cm²66666Net weight of machinekg32003400360048005300Areamm²1950*18951950*18951950*18952450*21502750*2150Machine heightmm23552355235526732673System Syntec 21MA/E80/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
