CNC Mould Die Engraving Machine for Sale

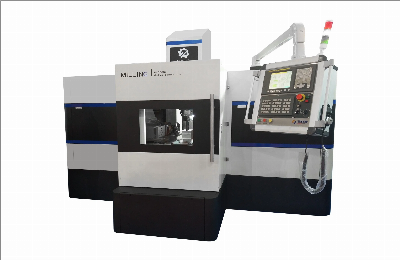

The best choice of surface milling machine for 20-350mm square workpieces.CNC twin head milling machine TH-350NCMax. Cutting capacity: 2x1.5mmMilling accuracy:Squareness tolerance≤0.015mm/300mm,accuracy tolerance range+/-0.01mm,roughness≤1.6um,parallelism≤0.015/300mm²Machine base with rigid, one piece iron constructionPowerful vertical hydraulic clamping with one main cylinderCertificate*   TUV ISO 9001 certificate *   TUV certificate *    SGS certificate *    CE certificate *    More than 39 patents certificate *    National High-tech Enterprises certificate Productivity FeaturesTH-350NC[Items][Unit]TH-350NC[Cutting capacity][Width*Length of workpiece]mm20-350[MAX.thickness of workpiece]mm145[Travel][X axis]mm200[Y axis]mm200[Z axis]mm600[Feed][Rapid feed speed X axis]mm/min10000[Rapid feed speed Y axis]mm/min10000[Rapid feed speed Z axis]mm/min10000[Spindle][Cutter diameter]mm150[Spindle speed]rpm50-500[Spindle taper] NT-50[Power][Spindle motor]KW2x5.5[X servo motor]KW1.8[Y servo motor]KW1.8[Z servo motor]KW2[Worktable][Dimensions]mm300*300[Max loading Weight]kg400[Others][machine weight]kg6000Spacem22.9x2.8Productivity configurationITEMSPECIFICATIONSQUANTITYMainCNC Twin head milling machineNC Controller FANUC systemModel:TH-350NC1 setStandard configuration1.Servo motor rotary worktable2. Screw type automatic chip conveyor3. Tools and tools car4.Closed house sheet metal5. Full set of cushion/clamp6. Workpiece automatic measuring7. 90˚Workpiece positioning device8. Air pressure system, blowing and automatic measurement9. Three colors working light10. Working status indicator light11. Air cooling system electric box12. single vertical hydraulic cylinder clamping13. Man-machine conversation system, automatic protection, diagnosis, display 1 set2 sets1 set1 set1 set1 set1 set1 set1 set1 set1 set1 set1 set Accessories1. Face cutter 150mm (R&L) 2. Transformer (380V to 220V)3. Scrap car2 sets1 set1 setProductivity benefitsGooDa CNC twin head milling machines offer the following benefits:1.has obtained dozens of patent technology and software copyright, and has successively passed the ISO 9001 quality management system certification and CE product safety certification of the European Union TUV certification, national high-tech enterprise evaluation and other honors.2. After sale service, deliver high reliability with an emphasis on efficient maintenance service all the time. Maintain part-to-part consistency. we will help you at once when there is a problem. Besides, we will check machine regularly.3. Machines come wired for USA electricity or your local electricity.4. We supply expert installation and training.5.Save you time and money and increase your productivity by milling your tools two sides at once.6. Maximize tool life assuring your production will pay dividends for many years.Don't worry and trust us, we will all here serve you!  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
