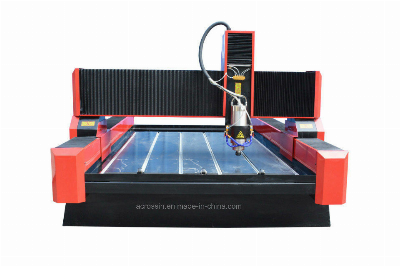

Product DescriptionTechnical specification ModelAC-1325OptionalWorking Area(X*Y*Z,mm)1300*2500*300Customization is availableMachine StructureThick-walled square tube lathe bed and T-slot table of sectional material Work HoldingBy Clamps Overall Dimensions(mm)3150*3050*1700 Precision(mm)0.01 Positioning accuracy(mm)0.01 Repeatability(mm)0.01 Idling Speed(mm/min)9.000 Working Speed(mm/min)5.000 Spindle5.5kw water-cooling(0-24000rpm)specified power, ari-cooling(0-18000rpm)at any KWDrive Systemstepper motorsServo motorsWorking VoltageAC380V/50HZ Command CodeG Code(*.nc.*.mmg.*.u00,ect.),*.eng Control SystemNcstudio system DSP Hand-heldCompatible SoftwaeWindow98/XP/7 G Code Product Overview Stone CNC Router is at the service of customers who need to do engraving on stone. Overall structure is the most solide or large bearing capacity,With tool cooling system and water-and-dust proof on three axes. it is suitable for many kinds of stone carving. Product Features1.Lathe bed uses thick-walled square tube structure with good rigidity and strength that can load heavy materials weighting up to one ton.2.High power spindle provides large cutting intensity and high efficiency.3.Tool cooling system ensures effectively processing effect and improves tool life.4.Water/Dust proof on three axes makes transmission system clean and rust-proof for good accuracy and longer life.5.Automatic oiling system can lubricate rails to ensure working accuracy, effectively extending machine's lifespan. Product Overview Stone CNC Router is at the service of customers who need to do engraving on stone. Overall structure is the most solide or large bearing capacity,With tool cooling system and water-and-dust proof on three axes. it is suitable for many kinds of stone carving.Product Features1.Lathe bed uses thick-walled square tube structure with good rigidity and strength that can load heavy materials weighting up to one ton.2.High power spindle provides large cutting intensity and high efficiency.3.Tool cooling system ensures effectively processing effect and improves tool life.4.Water/Dust proof on three axes makes transmission system clean and rust-proof for good accuracy and longer life.5.Automatic oiling system can lubricate rails to ensure working accuracy, effectively extending machine's lifespan.Scope of applicationMost perfect for engraving on common stone like marble,bluseston and even on hard stone like granite.It is also capable for engraving on glass of thickness more than 5mm.Suitable to not only stone engraving for tombstone,tile or other related industries,but also can do jobs with skill and ease on common material in woodworking,advertising and metal industry with a wide range and application and high practicality. /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
