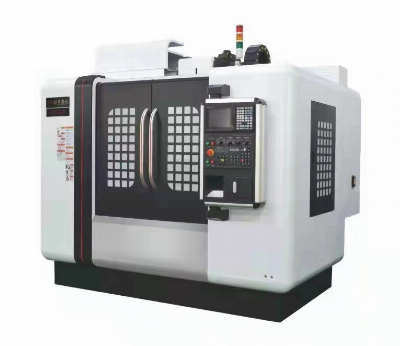

CNC Engraving Milling Machine Vmc

Product Overview   Engraving-Milling MachineHigh Precision Engraving-milling series machine adopts the new controlling system and the matched servo mechanism driver and electric motor, runs the three axles together. And suit for the complicated ,much proceeded and high precision requested mass parts which to be finished procedure with the more ordinary machines, tool cutters and frocks after more times installment,fixture and amendment. mainly proceeds the box series,complex curved surface, nonstandard parts, plates, sockets and boards, especially for the die manufacturing industry.Unique iron fining inner side, good stability and non-flexible ,stable precisionAaxless high rigidness, high wear resistance,stable processingTransmission shaft good rigidness ,reducing extension.prolong using timeSpindle max radial and shaft direction thrust, reducing the shaking  ITEMUNITRL-650TRAVE X Axis Travel mm 500 Y Axis Travel mm 600 Z Axis Travel mm 250 Spindle nose to table surface mm 50-330 TABLE Worktable Size mm 500x600 Max load on the table kgs 300 FEED Three Axis Rapid Feed m/min 12/12/12 SPINDLE Spindle Speed R.p.m. 24000 Spindle Chuck   ER25 Maximum Diameter   Dia 16 OTHERS Controlling System   21MA Positioning Accuracy mm +-0.008/300 Repeat Positioning Accuracy mm +-0.005 Power Supply   3p 4w 9kw Machine Weight Kgs 3000 Machine Size mm 1650x1800x2000 PRODUCT CONFIGURATIONUSING Controlling SystemCompany ProfileWeifang Runlian Economic and Trade Co., Ltd. was established in 2005. It has 15 years of experience in R&D and sales of lubricants series and engraving milling machine. It has a mature operating team and a professional technical R&D team. It has cooperated with more than 40 well-known enterprises in China. Fully trusted by our customers. In order of market demand and specific technical requirements, we are professional our lubricants series and CNC ,VMC,engraving milling machine, and directly provide high quality products and professional after-sales services for the manufacturing industry.    Company vision: become the first-class industrial service provider.  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
