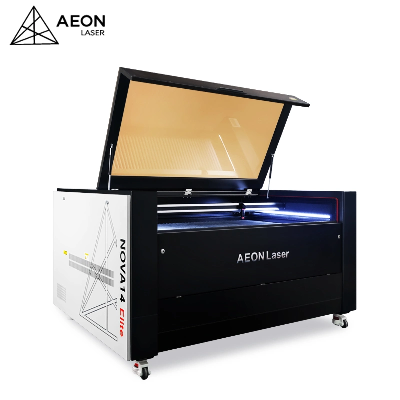

Aeon Laser Elite Nova Laser Cutting Machine

Product DescriptionAeon Laser ELITE NOVA14 1490 Co2 Laser Engraving Machine The structure of the machine is very strong, which makes it more steady. The machine equipped with honeycomb and blade worktable and with model3000 or 5000 chillers, Max. engraving speed 1200mm/s; Max acceleration speed 2G.Model :  ELITE NOVA10  1070 (1000*700mm)  /  ELITE NOVA14  1490 (1400*900mm) /  ELITE NOVA16 1610 (1600*1000mm)Power: 80W/100W/130W/150 CO2 Glass Tube Features:    1. 1200mm/s, 5G acceleration engraving speed.  2. Chiller, air assist, exhaust fan are all built in the chassis.   3. Clean Pack technology reduces motion parts maintenance by at least 80%.  4. Seamlessly switching between DC glass tube.  5. Better software LightBurn.  6. Integrated autofocus. All-in-One SystemInstalling a large format laser in a confined space, has never been more practical. Enjoy a clutter free workspace with a built-in 5200 water chiller, exhaust fan and air pump. All components are still easily accessible and can be removed for routine maintenance.  Streamlined Ruida keypad.Another industry first is the all new redesigned Ruida controller, which brings commonly used functions right to the surface, for increased setup times and overall ease of use. You can even monitor amperage (mA) and water temperature right from the display screen. Double working table lifting up to 200mmThe ELITE NOVA series has a Honeycomb table as standard - not optional. It has a rise and fall of up to 200mm and has an automatic focus optional function to control table height. With the opening front door open you can work with larger pieces of material giving maximum efficiency for a laser.Integrated air filterThe environmental problems for laser machines are more and more attracted attention by customers. In the process of engraving and cutting, the laser will bring heavy smoke and dust. That smoke is very harmful. Although it can be driven out of the window by the exhaust pipe, it did harm the environment badly.With our integrated air filter specially designed for the ELITE NOVA series, it can remove 99.9% of the smoke and bad smells made by laser machine, and it can be a support table for the laser machine as well, further, you could put material or other finished products on the closet or drawer.  Product ParametersTechnical Specifications:Working Area:1400*900mmLaser Tube:100W/130W CO2 Glass Tube Laser Tube type:CO2 sealed glass tubeZ-Axis Height:200mm adjustableInput Voltage:220V AC 50Hz/110V AC 60HzRated Power:1200W-1300WOperating Modes:Optimized raster, vector and combined modeResolution:1000DPIMax Engraving Speed:1200mm/secMax Cutting Speed:800mm/secAcceleration Speed:5GLaser Optical Control:0-100% set by softwareMinimum Engraving Size:Minimum Font Size 1.0mm x 1.0mm(English Letter) 2.0mm*2.0mm(Chinese Charactor)Locating Precision:
