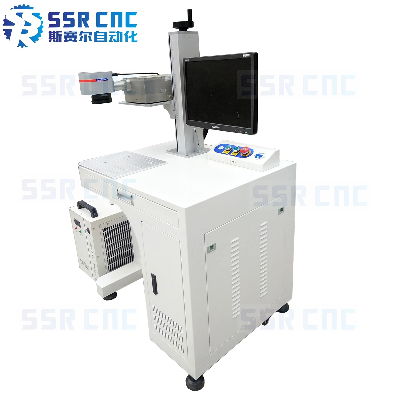

UV Laser Marking Machine for Glass, Plastic, Ceramic, Cables, Wood, PVC

UV Laser Marking Machine for Glass, Plastic, Ceramic, Cables, Wood, PVCSSR-UV3W/5W/10WFeatures1) JPT laser source with stable performance and long working life2) Laser wavelength 355nm, UV laser, with very high precision marking3) CW5000 water chiller4) Can be used for a various materials, like glass, crystal, cosmetics, food and medicine package, etc.5) 2 years warranty for whole machineProduct ParametersTechnical Parameters:ModelSSR-UV3W/5W/10WLaser sourceJPTLaser power3W 5W 10WWave length355nmMarking area110*110mm,175*175mmLaser repetition frequency20KHZ-200KHZBeam qualityM²≤1.2Marking speed7000-12000mm/sMarking depth0.01-1mmRepetition Precision0.001mmMinimum Line Width0.013mmMinimum Character0.2 mmCooling StyleAir coolingPositioning WayRed lightControl softwareJCZ EZCAD marking software and UV laser marking machine softwareSupported FormatPLT, DXF, DST, AI, SDT, BMP, JPG, JPEG, GIF, TGA, PNG, TIF, TIFF,CAD, CDR, DWG and ETCControl boardJCZOperating VoltageAC220V/50HZ/2AGross Power≤500WSupported WindowsWindows XP,7,8,10CertificateISO, CEMaterial can be processedall metal material and all non metal materialOthersUSB cable for connection, Flash drive with software and English manuals.PackagingWooden boxPackaging Dimension880*870*1100mmGross weight150kg  Detailed PhotosStandard Acessories with the glass laser marking machine:Working SamplesApplication Materials:Metals like steel, aluminum, iron, surface marking.Nonmetal Materials: glass, electroplating materials, coating materials, plastics, rubber, epoxy, resin, ceramic, plastic, ABS, PVC,PES, steel, titanium, copper and other materials.Packaging & Shipping1. We use international standard exporting plywood package, which is fumigation-free2. We offer item FOB, CIF, CFR, DDU, EXW by sea:FOB: Customer need to find shipping forwarder by himself, take machine from China sea portsCIF: We will find shipping find shipping forwarder for customer, arrange sea delivery for customer from China sea port to customer's country sea port, buy sea insurance for customerCFR: Under CFR item, customer need to buy sea insrance by himself, other is sampe as CIF itemDDU: Under DDU item, we arrange machine delivery from our factory address to customer receiving addressEXW: Customer need to arrange take machine from our factory and arrange all from China sea port to customer's country sea port3. We can also offer delivery by air for small package machine  Different ModelsF-20/30/50W Fiber Laser MarkerFM-20/30/50 Fiber Laser MarkerContact US /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
