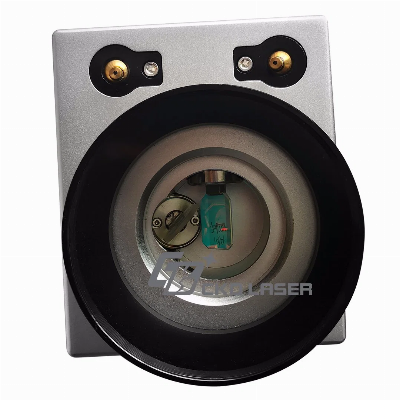

X-Y Optical Scanning Head Galvanometer Built-in Two LED Lights

ScanHead10 series high-speed scanning vibrator can carry 10mm spot reflector, the maximum incidence spot diameter is 10mm, used in optical scanning, laser marking, drilling, micromachining, medical industry.The optical scanning system has the characteristics of fast speed, low drift, high positioning accuracy and reliable and stable operation. Its comprehensive performance has reached the leading level in China, and it is mainly suitable for high-speed and on-line flight marking of optical fiber.The 2D scanning vibroscope can select lenses of different wavelengths and power levels, and supports the XY2-100 international common protocol. The system adopts advanced servo control algorithm and efficient photoelectric sensing positioning technology, which can meet most application requirements in terms of performance and positioning accuracy.Strict incoming material inspection, mature manufacturing technology, long time drift test and aging test, to ensure the system's long-term stability.seriesSCANhead10aperture10mmtracking error  time0.22ms0.01 of full scale0.3ms0.01 of full scale0.70msmarking speed 2500mm/spositioning speed 15m/spower requirements±15 V DC max.3 A eachweight1.9kgrepeatability
