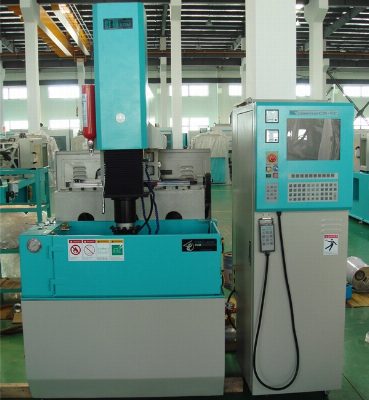

Creator 430 Engraving Milling EDM CNC Machine

CREATOR 430 engraving milling edm cnc machineBrief Introduction:Creator Precision Co., LTD. was established in Taiwan at 1986.In 1997 , Creator Industry (Suzhou) Co., Ltd. was found to extend Mainland China market. 1.The registered capital is USD 5,080, 000.2.The new factory covers 24,680sqms and holds a building area of 19,000sqms.3.There are 250 employers which assure4.Annual production at least as 600 sets of EDM and 100 sets of VMC. Main Unit Features:1. The structural parts are designed and analyzed by applying the advanced Finite Element     Analysis(FEA).2. Precision linear ways on all axis assures smooth movement and high accuracy.3. All structural casting are made of FC-30 cast iron, tempered and stress relieved for             deformation free performance.4. High precision spindle assembly insures excellent eroding performance.5. Table surface is hardened and precision ground, assuring high machining accuracy and       long service life.6. Three axes movements are transmitted by precision ball screws.7. Three axes are driven by DC servo motor.8. Three axes are equipped with 1 µ Linear scale for closed loop control.9. Each machine is compensated by laser interferometer, ensuring position reliability and increasing machine efficiency.Controller box features:1. The controller employs INTEL PENTIUM industrial grade mother board.2.15" TFT LCD monitor.3. Conversational man-machine interface.4. Automatic table type editing for 10-step machining programs creation.5. Table type program input interface.6. Selection type 2D/3D orbital setting.7. Graphic automatic touch mode interface.8. Tungsten steel, extra hard and special material eroding circuit.9. MPG handwheel for micrometric positioning adjustment.10. Isolated modular circuit design increases convenience of maintenance and stability of        circuit.11. Full digital discharge pulse control combined with the use of FPGA extra large IC                  components.12. This permits high efficiency discharge pulse control combined with the use of FPGA                 extra large IC components.13. Extra hard material discharge circuit is available upon request.Applications:1. Precision tungsten steel moulds.2. Injection moulds.3. Mirror-finish injection moulds.4. Electronic parts moulds.5. Die casting moulds.6. Progressive IC punching moulds. Parameter&indicators:1.ModelUnitCNC430Table travel(X axis)mm400Table travel(Y axis)mm300Quill travel(Z1 axis)mm-Work head travel(Z2 axis)mm320Work table dimensions(LxW)mm650x320Distance between plate and tablemm355-675Work tank inner dimensions(WxDxH)mm990x600x455Max. capacity of dielectric fluidLiter450Max. electrode weightkg75Max. workpiece weightkg1000Machine unit dimensions(WxDxH)mm1150x1700x2280Machine unit weightkg2302.ModelCR6CSpecification50A75A100A #150A #250A #Input voltage                                       3    V220.346220.346220.346220.346220.346380.415380.415380.415380.415380.415Input powerKVA710152030Working voltage(No load)V100100100150250High voltageV140 or 250140 or 250140 or 250140 or 250140 or 250Min. ON TIMEµS11111Min. OFF TIMEµS11111Max. Cutting speedmm3/min480720105015002500Best surface finishµmRa.0.20.20.20.20.2Min.Electrode wear rate%0.30.30.30.30.3Weightkg210248360490700/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
