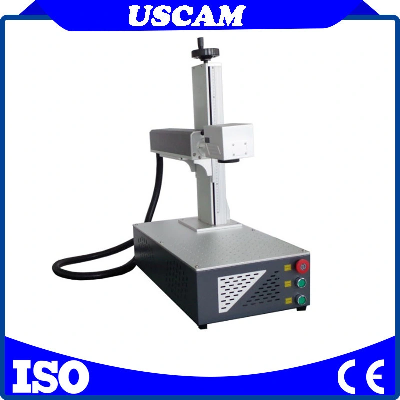

CNC Manufacturer Mini Portable Fiber Laser Marking Machine for Metal

Fiber Laser Marking Machine adopts the imported fiber laser generator, high speed Galvo system to enable stable laser output and high qulity laser mode. This model Fiber Laser Marking boasts for its fast marking speed, good marking effect and high efficiency to meet the demand of mass production. FurthermoreFiber Laser Marking Machine Price also enjoys the advantages of easy operation, low running cost, long-term trouble -free working and free from maintenance. All these factors devotes to its capacity to satisfy industrial production.                                                           Technical Parameter                                                          Item NameTechnical Parameter  ModelUSJ- 20WUSJ-30WUSJ-50W/100W  Laser power20W30W50W/100W  Laser wavelength1064nm  Laser type Fiberlaser source  Max Pulse Energy0.5m J  Repeat frequency1KHz-1000KHz  Pulse width6-250 ns  Marking depth0.01-0.5mm  Marking area110*110mm/175*175mm/200*200mm  Rated power consumption500W800W1200W  Operating voltage110V- 240V/50-60 Hz/15A  CoolingAir Cooling  Packing size770*470*700 mm (L*W*H)  Gross weight60kg KG  PackageStandard export wooden case  Parameter of fiber laser sourcePulsed fiber laser20W QB30W QB50w QBWavelength(nm)1060~10851060~10851060~1085PolarizationRandomRandomRandomOptical isolatorYesYesYesNominal average output power (W)≥20≥30≥50Single pulse energy (mJ) @20kHz11@30kHz1@50kHzBeam quality(M2)
