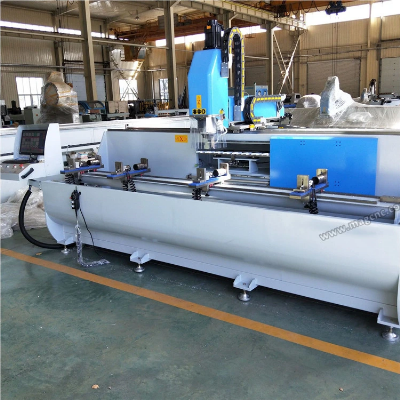

CNC Hole Milling Drilling Machine for Door Window Making

3 Axis CNC Processing Center Aluminum Processing MachineProduct Description1.1  This machine is designed for processing round holes,slots,keyhole etc on aluminum profile,window-door and curtain wall industry,it is also suitable for processing milling,chagrining,engraving plane surface and other procedure.1.2  Main spindle adopt air-cooling electric main axis,9kw power , have the function of high precision, high safety and high reliable.1.3  Adopt Taiwan SYNTEC CNC control system.Have professional CAD-CAM programming software.It can transform processing code automatically,have the function of easy operation,high efficiency and lower labor intensity.1.4  Imported guide rail,sliding block,X axis adopt high precision oblique gear and rack driving.Y and Z axis adopts high precision ball screw drive.The drive is stable,so can improve the precision of whole machine.1.5  Inside blades storage can hold 6-8 sets blades,the handle is approved ISO 30 standards,it is very safety and reliable.Three faces processing, When processing deeply hole (hetero type hole ), it can realize deeply  hole  processing through overturn worktable, so can highly improve processing efficiency.1.6  Adopt manual pump oil supply system,blades adopt system control system control spray cooling device.1.7  The main electrical parts:circuit breakers,AC contactor are all SCHNEIDER brand.1.8  The main components adopts steel structure and they are all through aging treatment.1.9 The worktable can overturn 180, -90,0,+90 degree, clamping one time profile can realize three faces processing. Product ParametersParameter Air Pressure0.5~0.8MPaX/Y/Z Axis stroke3000mm*500mm*330mmInput Voltage380V 50Hz or As Customer needInput Power3KW Air Cooling Spindle(6kw Spindle for optional) Main axis rev18000rpmMain axis power S6:  9KW        S1:  7.5KWSuitable Milling Cutter DiameterER 25: from 2mm to 16mm; ER 32: from 3mm to 20mmProcessing range200*200Overall size4180×1600×2250mmWeight1550kg  Main accessory Control systemTaiwan SyntecSolenoid valveAirtecCylinderAirtecAir Filter DeviceAirtecElectrical Button and SwitcherSchneiderAC Contactor and Circuit BreakerSchneiderApproach SwitchTaiwan DeltaGuide railTaiwan Hiwin Remarks1. All the electrical elements,Circuit breaker protection and AC contactors are schneider or other world famous brand.2. International CE standard high flexibility, high shielding cables.3. Warranty time: 1 year4. Quotation Valid: 90 days                                                                               5. Payment terms: 30%T/T as deposit, 70% balance made before shipment by T/T6. Delivery time: 30 days upon receipt of 30% deposit by T/T         7. Packaging: Film packaging and fumigation-free wooden case(if delivery by full container load, then without wooden box, just use the tray)8. After sales service:      1)24 hours service on Internet and Telephone, free instructions and problem solving  2) Free training to make sure a master of the operating of cnc router for the person who come to our factory  3)User-friendly English manual or operating video for machine using and maintaining4) on-the-spot training, installation and repairing can be met if required.(If so, need the buyer afford the visa and air ticket and 100USD/DAY Salary) Detailed PhotosSample:Packaging & ShippingCompany ProfileCustomersExhibition             /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
