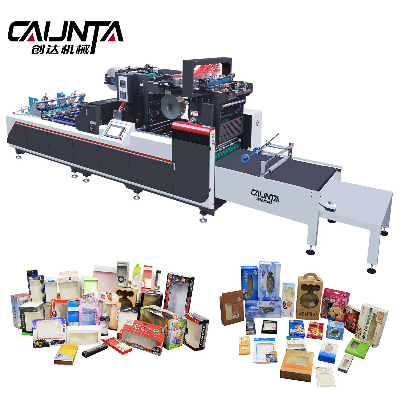

G-1080 CE Paper Bag Making Machine with Window Patching and Punching

Model G-1080Max.Paper SizeW1080XL800mmMin.Paper Size110X110mmPaper WeightKraft Paper:150-1200g/m2   White Cardboard:230-1200g/m2 Corrugated Paper:≤3mmMax.Film SizeW 400XL430mmMin.Film SizeW30XL65mm Max. Film Unwinding Diameter Hob:  400mmHorizontal Knife:  450mmFilm ThicknessHob:   CPE/PE:0.05-0.25mm  PVC:0.05-0.2mm  APET/PET:0.03-0.2mm Horizontal Knife:CPE/PE:0.1-0.3mm  PVC:0.08-0.3mm  APET/PET:0.06-0.3mm Film PrecisionHob:   Transverse:±0.5mm  Longitudinal:±2mmHorizontal Knife:Transverse:±0.2mm  Longitudinal:±0.5mmMaximum SpeedHob:  Paper L≤400mm:20000pcs/h  Paper L>400mm:10000pcs/h Horizontal Knife:  10000pcs/hQuantity of Servo Motor10 Sets Quantity of Stepping Motor7 Sets    Driving Parts: Two V-shaped stamping moulds with X-direction automatic adjustment,4 sets of Y-direction automatic adjustment, Automatic paper receiving 1 setQuantity of V-shaped Punching Mould4 KitsQuantity of Film Creasing Wheels2 KitsPower380/415V  50/60Hz  16KWOverall DimensionL670×W182×H200cmOverall Weight3700kgG-1080 Full-automatic High-Speed Digital-control Window Patching Machine has been the latest model pushed to market. It is dual-use all-in-one machine with the functions of both simple patching and film patching with creasing. It is equipped with two sets of film unwinding. The innovative film cutting and patching structure enables it to patch two windows in the meantime .Its highest roll cutting speed reaches 20000pcs/h with the highest transverse cutting speed of 10000pcs/h. It has got a number of appearance and utility model patents. The whole machine is equipped with 10 servo motors and 7 stepping motors with full-digital control function All parameters can be fine-tuned during operation. Memory storage of 100 sets of customer order files enables it one key to retrieve the order when meets the repeated products or replacement order with the fastest adjustment time of only 10 minutes. The online diagnostic control function can be an additional option. This machine can realize the double creasing and double cutting on PVC,BOPET,PE,OPP,CPP film with the thickness of 0.05-0.25mm. Automatic paper feeding, gluing, cutting and film patching can all be realized in this machine with the highest running speed of 20000pcs/h. It is also equipped with multi-sensor detection of each station, real-time monitoring of running state and abnormal speed reduction alarm functions.1.Horizontal knife +Hob cutting film + double film feeding+Double group film applicator2.10 servo motors + Full digital-control3. 100 groups of order saving and reading4. One key automatic adjustment of V-punching mould5.Paper receiving stepper with batch counting6.Paper vacuum adsorption transport7.Double sheet / empty sheet gluing rising automatically8.Film with creasing and cutting angle function9.Follow lable of film printing surface10.Film with punching holes11.Film with transverse creasing (optional)12.Film constant temperature leveling system (optional)13.Tissue box film middle cut (optional)Q1.What about the payment terms?By T/T 30% deposit in advance, and 70% balance should be paid before delivery(T/T).Q2.How can I know if it is paid successfully?We will send you a payment confirmation email upon receiving your payment.Q3.What's the scope of the machine application?The  automatic high-speed window patching machine is suitable for the window patching of gift box, tissue box(some modle of machine is OK), toy box, cosmetic box ,cardboard ,corrugated paper etc. It can realize the film cutting, gluing and patching for the packaging products.Q4.How will be the machine packed?The machine will be packed with wrapping film and then packed into fumigated wooden case.Q5.What about the after-sale services?The warranty period will be one year. During the 1 year warranty if any part is faulty, our company will give you replacing parts for free and help you to change the faulty parts. When the warranty expired, our company will still give you technician support for free. The only difference is the replacing part no longer free. So, we provide lifelong after sale service to you as long as you use our machine.Q6.Why choose us?We are the the leading manufacturer in window patching machine area. We have won the trust from quite a large number of customers through whom we get more new orders because of their recommendation. Our machine quality is always ahead of the curve because of our creative technician & development team and attentive after-sale services.   /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
