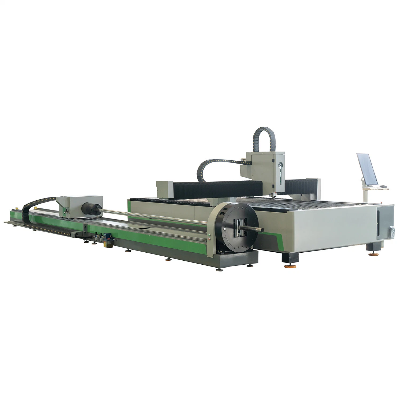

Laser Fiber Laser Cutting Machine for Metal Pipe Tube Engraving

laser fiber laser cutting machine for metal pipe tube engravingProduct DescriptionFeatures: 1)Gantry CNC machine and high strength welding body. After high temperature annealing and precision machining by large CNC milling machine, it has good rigidity and stability.2) Adopts imported high precision, high speed, linear guide rail drive, good rigidity and good stability.3) Aluminum beam, advanced heat treatment process, high strength, light weight, good rigidity. 4) Fiber laser has a series of advantages, such as high beam quality, high brightness, high conversion rates, maintenance-free, stable and reliable operation of low cost and small size, etc. 5) Adopting servo motor and driver, and combind Japan Reducer, which can make sure machine high speed and big power. Fiber Laser Cutting Machine  Model SPL3015TWorking area 1500*3000mm Optional Working Area 1300*2500mm, 2000*3000mm, 2000*4000mm, 2000*6000mm,..Configuration SpecificationsLaser GeneratorGW/Raycus/IPGLaser Cutting HeadAu3tech, Raytool, CNC ControllerAu3tech, CypcutServo driver systemDelta/Yaskawa/Pansonic    Speed Reducer Shimpo Reducer, JapanRack and Pinion:Taiwan CSK/TBI/HIWIN guide railsMax.cutting speed0-30m/min(Depending on the material and thickness)X, Y, Z Axis Repeat PrecisionX, Y, Z Axis Repeat Precision≤±0.03mm /mMin line width≤0.15mmMaximum Empty Running Speed120m/minDriving wayImported servo motorTransmission wayY-axis import gear rack double driver, X-axis imported ball screwCooling SystemWater CoolingContinuous working time24 HoursPower requirements380V/3 Phases /50Hz or 60HzMachine size (L*W*H)4500x2300x1800mm  Detailed Photos   Japan Yaskawa servo motor and driver -More accurateIt realizes closed-loop control of position, speed and torque; overcomes the problem of stepping motor out of step;-Rotating speed is more fasterHigh speed performance, general rated speed can reach 2000~3000 rpm;-DaptabilityHigh strong anti-overload capability, load three times the rated torque, suitable for occasions with transient load fluctuations and fast start required;-StableSmooth operation at low speed, no stepping operation similar to stepper motor when running at low speed.  Fiber laser head: Including: Manual Focusing and Automatic Focusing,More and more fiber laser cutting machine use automatic focusing laser head.    The software automatically adjusts the focusing lens to realize automatic perforating and cutting plates of different thickness.The speed of automatically adjusting focus lens is ten times of the manual adjusting.     Bigger Adjustment RangeAdjustment range -10 mm~ +10mm, precision 0.01mm, suitable for 0 ~ 20mm different types of plates.     Long Life TimeCollimator lens and focus lens both have water-cooling heat sink which reduces the temperature of the cutting head to improve the life of the cutting headTube welded BedThe constant temperature of water chiller can keep the laser power stable,work more stable and fastWhich is welded by a number of rectangular tubes. Stiffeners are arranged inside the tubes to increase the strength and tensile strength of the bed, it also increases the resistance and stability of the guide rail so as to effectively avoid the deformation of the frame.High strength, stability, tensile strength, ensuring 20 years of use without distortion; Thickness of rectangular pipe wall is 10mm and weight is 2000kg.Aluminium Gantry High hardness Aerospace aluminum is manufactured with aerospace standards and extruded in a 4,300 ton press. The hardness can reach T6 after processing.High speed Aviation aluminum has the features like good toughness, light weight, corrosion resistance, oxidation resistance and low density, which greatly improve the processing speed.  ApplicationApplication productsCutting a wide variety of metal plates, tubes, mainly applicable to stainless steel, carbon steel, manganese steel, galvanized sheet, a variety of alloy plates, rare metal and other materials cutting.Application IndustryIndustry of kitchen ware, lamps and lanterns, panel beating, metal cabinets, auto parts, refrigerators, air condition, elevators, hotel metal supplies processing, etc Related Products After-sales Service1. For whole fiber laser cutting machine, we provide 2 years warranty and lifetime after-sales service, we will provide the consumable. parts at an agency price when you need replacement. 2. Main parts(excluding the consumables) shall be changed free of charge if there is any problem during the warranty period. 3. Our engineer could support you technology to your country if necessary. 4.Our engineer could service you 24 hours online by Skype, yahoo, msn, QQ, or by cellphone. 5. English manual and CD video for machine using and maintaining will send to you with the machine. Packaging & Shipping1. Standard plywood case, its compressive strength and bearing quality is better.2. The board area is bit, the soil structure is good, it is better in leakproofness and waterproof.3. When importing, the plywood case is wit
