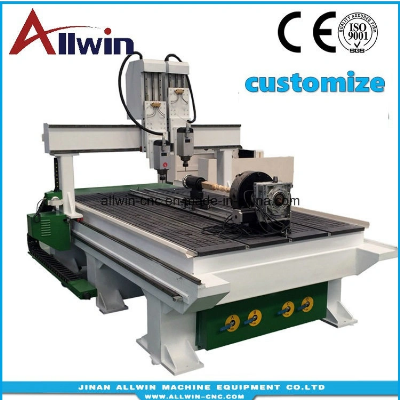

1325 CNC Router Engraving Machine with Rotary Axis

Features: 1300x2500x350mm Two Heads Wood Cnc Router Machine With Rotary Axis1)Welded steel pipe lathe bed, strong and never out of shape2)Double motors and drivers of Y axis which can ensure steady movement3)Rack gear transmission ensures fast speed and high accuracy4)Imported HIWIN square rail ensures high accuracy and heavy workload5)Adopt vacuum system. Made by advanced international technology, with double cavities, configured with vacuum pump of strong adsorption, can absorb different size materials6)Machine with YAKO 2811 driver, you can choose YASKAWA servo motor and driver.7)Humanistic design,the machine can be disassembled,so it is easily transported.1300x2500x350mm Two Heads Wood Cnc Router Machine With Rotary AxisDescriptionParameterX,Y,Z Workiong Area1300*2500*200mmX,Y,Z Repositioning Accuracy±0.03mmX,Y,Z Traveling Positioning Auccuracy±0.03/300mmTable SurfaceVacuum table and T-slotFramecast by ironX,Y StructureRack and Pinion Drive, Hiwin Rail Linear GuideZ SturctureHiwin Rail Linear Guide And TBI Ball ScrewRotary axis 100mm diameter ( optional)Max. Power Consumption(Without Spindle)2.5kw~3kwMax.Rapid Travel Rate 25000mm/minMax.Working Speed18000mm/minSpidle Speed3.5kwSpindle Power0-24000RPMWater tankWithDrive MotorsStepper MotorWorking VoltageAC380V/50/60Hz,PH(Option:220V)Command LanguageG Code Operating SystemDSP System(Options:Ncstudion/Mach 3 PC Software) Computer InterfaceUSB Flash Memory128M(U Disk) CollectER25X,Y Resolution
