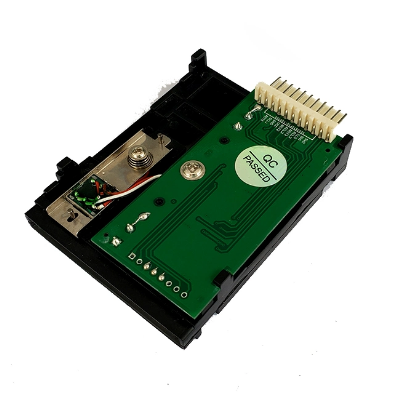

Without Bezel Magnetic Smart Card ReaderOverview: This is a manual semi-insert magnetic card reader with a TTL interface. It is usually used in authentication, access control, attendance management and other occasions. The reader consists of two parts: one is a handheld part and the other is a fixed part. The hand-held part is usually a plastic box, which houses components such as magnetic heads, motors, and mechanical transmissions for reading magnetic card information. The fixed part is usually a chassis, which is used to support the handheld part and provide power and communication interfaces. The working principle of the manual half-insert magnetic card reader is that when the magnetic card is half-inserted into the reader, the magnetic head will pass through the magnetic layer on the surface of the magnetic card to read the information in the magnetic card. The reader uses a motor to drive the magnetic head to move on the surface of the magnetic card to read information on multiple tracks. A TTL interface is an interface used to communicate with a computer or other device. Via the TTL interface, the reader can send data to and receive data from the computer. TTL interfaces typically communicate using a voltage range of 1.8V to 3.3V and transmit data using binary code. The use of the manual half-insert magnetic card reader is very simple. Users only need to half-insert the magnetic card into the reader to complete identity verification or other operations. Since the reader has a TTL interface, it can communicate with other devices, such as sensors, access control systems, etc. Specification: Card StandardISO 7811Track No.(IATA) (ABA) (MINTS)Reading MethodF2F (FM)Recording Density210 BPI75 BPI210 BPIRecording Capacity79 Characters(7-bit code)40 Characters(5-bit code)107 Characters(5-bit code)Card Thickness0.76 + 0.08 mmPower Supply3.0~5.5V DC Power ConsumptionLess than2.0mA (Single), 5mA(Double), 7mA(Triple) /5VRippleLess than 50mVp-pReading Track Width1.5mmOperation LocusIndoors onlyCard Feeding Speed15 120 cm/sec (6-50inch/sec)Head Life time500,000 passes min.Error RateLess than 0.5%Insulation Voltage & Resistance500 V DC for 1min., 10M Ohm or more at 500 V DC(Between ground and frame)WeightApprox. 45g Feature: Manual half-insert design: The reader adopts a manual half-insert design, and the user needs to half-insert the magnetic card into the reader to perform identity verification or other operations. This design can improve the application range of the reader, for example, it can be used for magnetic cards of different sizes and shapes.TTL interface: The reader has a TTL interface to communicate with computers or other devices. Via the TTL interface, the reader can send data to and receive data from the computer.Mechanical transmission: Manual semi-insert magnetic card readers usually include a mechanical transmission for driving the magnetic head to move on the surface of the magnetic card to read the information on the magnetic card. This mechanical transmission can ensure the accuracy and stability of the reader.Readable and writable: Manual semi-plug-in magnetic card reader can read and write magnetic card information, so it can be used in identity verification, access control, attendance management and other occasions.Simple operation: The manual half-insert magnetic card reader is very easy to use, users only need to half-insert the magnetic card into the reader to complete identity verification or other operations, so it is suitable for various application scenarios.Application: payment systemAccess controlentertainment facilitiestraffic systemmedical insuranceGovernment ID systemAttendance Systemticketing systemCompany Profile:Established in 2017 ,Shenzhen rCloud Technology Co.,Ltd focus on developing ,manufacturing and marketing of standard and custom card readers for casino & gaming industry.we had involved in some main casio markets such as Macedonia.Chile .Turkey.Bulgaria .Mexico .France .taiwan and Macao etc .In order to provid our customers with high-quality and satisfactory products , we improve the lastest technology and equipment constantly. we adopt Japanese advanced manufacturing technology and uses the first-class equipment and raw materials from United States, Japan and Taiwan. Simultaneously,we has got certification of ISO9001,CE, Rohs to ensure our quality control system . /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
