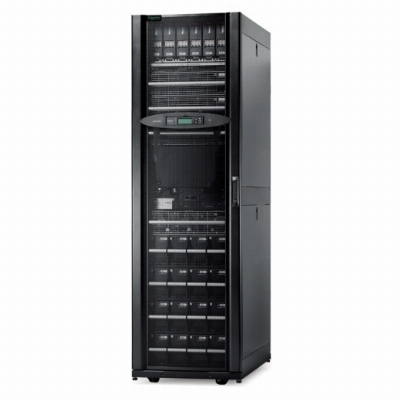

Symmetra PX High-performance, right-sized, modular, scalable 3 phase UPS (10-100kW 208V, 100-500kW 480V, 16-500kW 400V) for any size data center or facility10kVA to 500kVA The Symmetra PX is a world class, redundant, scalable, 3 Phase UPS power protection system designed to cost effectively provide high levels of availability. Seamlessly integrating into today's state-of-the-art data center designs, the Symmetra PX is a true modular system. Made up of dedicated and redundant modules--power, intelligence, battery and bypass, all engineered into a design that is easily and efficiently serviceable, this architecture can scale power and runtime as demand grows or as higher levels of availability are required. Symmetra PX serves as the core power train that drives InfraStruXure® systems for small and medium data centers but can also power individual "zones" of larger data centers. Highly manageable, the Symmetra PX features self-diagnostic capabilities and standardized modules which mitigate the risk of human error resulting in increased overall data center reliability. Technical SpecificationsOutputMax Configurable Power (Watts)96.0kWatts / 96.0kVANeutral Output Current160AOutput Voltage NoteConfigurable for 380 : 400 or 415 V 3 Phase nominal output voltageEfficiency at Full Load95.0 %Output Voltage DistortionLess than 2 %Output Frequency (sync to mains)50 Hz +/- 0.1 % For 50 Hz nominal Unsynchronised, 50/60 Hz +/- 3 Hz user adjustable +/- 0.1 Hz Sync to mainsTopologyDouble conversion onlineWaveform typeSine waveOverload Operation10 minutes at 125% and 60 seconds at 150%Output Voltage THD< 2% for 0 to 100% linear load and < 6% for full non-linear loadOutput Voltage Tolerance+/- 1% static and +/- 5% at 100% load stepBypassBuilt-in static bypassInputInput frequency40 - 70 HzInput voltage range for main operations340 - 477VEfficiency at Full Load95.0 %Input Total Harmonic DistortionLess than 5 % for full loadMaximum Short Circuit Withstand (Icw)30.0kAmpsInput Power Factor at Full Load0.99Batteries & RuntimeBattery typeVRLAIncluded Battery Modules6Typical recharge time3.5hour(s)Nominal Battery Voltage+/- 192 V (split battery referenced to neutral)End of Discharge Maximum Battery Current221.0ABattery Slots Empty3RBC Quantity4Battery Charge Power (Watts)5.908kWattsDC Overcurrent Protection320AExtendable Run Time1Battery Volt-Amp-Hour Capacity20736Extended Run OptionsSymmetra-PX-64kW-Scalable-to-96kW-400V-with-Modular-Power-DistributionEnd of Discharge Battery Voltage+/- 154 VEfficiency in Battery Operation94.0 %Maximum Available Short Circuit Current4kAmpsOverload Operation60 seconds at 125% and 30 seconds at 150%RuntimeView Runtime GraphView Runtime ChartCommunications & ManagementInterface Port(s)DB-9 RS-232, SmartSlotControl panelMultifunction LCD status and control consoleAudible AlarmAlarm when on battery : distinctive low battery alarm : configurable delaysEmergency Power Off (EPO)YesAvailable SmartSlot™ Interface Quantity2PhysicalMaximum Height1991MM, 199.1CMMaximum Width1200MM, 120.0CMMaximum Depth1070MM, 107.0CMNet Weight1454.0KGShipping weight1576.0KGShipping Height2140MM, 214.0CMShipping Width1696MM, 169.6CMShipping Depth1210MM, 121.0CMColorBlackEnvironmentalOperating Temperature0 - 40 °COperating Relative Humidity0 - 95 %Operating Elevation0 - 1015.9metersStorage Temperature-15 - 40 °CStorage Elevation0 - 15240metersAudible noise at 1 meter from surface of unit63.0dBAOnline thermal dissipation11496.0BTU/hrProtection ClassIP20, NEMA 1ConformanceApprovalsEN 50091-1, EN/IEC 62040-1-1, EN/IEC 62040-2, EN/IEC 62040-3, EUROBAT, ISO 14001, ISO 9001, VFI-SS-111Standard warranty1 year on-site repair or replace with factory authorized Start-UpGeneralBypass Connection5 wire (3P + N + E)Bypass Protection Device160.0Max Bypass Input Current139.0A/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
