15.6 Inch TFT LCD Reliability Application Factory Spot Direct Selling

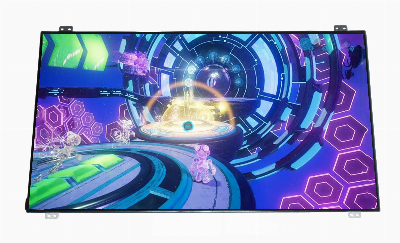

IntroductionThe 15.6 inch display is a color active matrix TFT LCD module using amorphous silicon TFT's (Thin Film Transistors) as an active switching devices. This module has a 15.6 inch diagonally measured active area with Full-HD resolutions (1920 horizontal by 1080 vertical pixel array). Each pixel is divided into RED, GREEN, BLUE dots which are arranged in vertical Stripe and this module can display 262k(6bit) colors . The TFT-LCD panel used for this module is a low reflection and higher color type. Therefore, this module is suitable for Notebook PC. The LED Driver for back-light driving is built in this model. All input signals are eDP1.2 interface compatible.  Features2 lane eDP Interface with 2.7Gbps Link Rates Thin and light weight 262k(6bit) color depth, color gamut 45% Single LED Lighting Bar. (Bottom side/Horizontal Direction) Data enable signal mode Side Mounting Frame Green Product (RoHS & Halogen free product) On board LED Driving circuit Low driving voltage and low power consumption On board EDID chipGeneral Specifications   ParameterSpecification Active area 344.16(H) × 193.59(V)mmNumber of pixels 1920 (H) × 1080 (V) pixels Pixel pitch 0.17925(H) × 0.17925(V) mm Pixel arrangement RGB Vertical stripeDisplay mode Normally WhiteDimensional outline359.5 (H)× 206.92(V)× 3.2 (D:max) mmSurface treatmentAnti Glare /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
