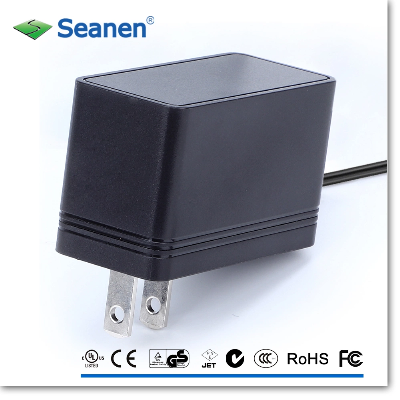

12V 1A 12W AC/DC Power Adapter

12W series UL GS CE UKCA RCM approved AC/DC Power Adapter1) High quality, High efficiency, extra safe design2) I/P: 100-240VAC 50/60Hz, O/P: 3-24V, 0.1-2A, 12W max3) RoHS, REACH, PAHs,6P, NP compliant4) UL, GS, CE, UKCA, C-TICK, PSE, FCC approved5) Energy efficiency: VI Specification1) Rated Input: 100-240V AC, 50/60Hz2) Operating range: 90-264V AC, 47-63Hz3) Output voltage: Available from 3.0VDC to 24VDC4) Output current: Available from 10mA to 2A5) Output power: 12W max6) RoHS, PAHs, REACH, WEEE compliant7) 6P, NP available8) Energy efficiency: VI (CEC, EUP, ERP, MEPS)9) Input current: 0.6A Max10) Inrush current: 60A Max, 100VAC at max load, 100A Max 240VAC at max load11) Leakage Current: 0.25mA max12) Load regulation: ± 5%13) MTBF: 50K hours at 25'C14) LED indicator: Optional15) Size: 60*28*36mm16) Safety standard: IEC/EN 62368-1, CSA C22.2, UL62368Safety ApprovalsUL/cUL/GS/CE/UKCA/CB/C-TICK/CCC/PSE/FCCProtections1) Short circuit protection2) Over voltage protection3) Over current protectionEnvionmental requirements1) Operating Temperature: 0-40oC2) Storage Temperature: -20-80oC3) Operating Relative humidity: 10-90% RH  SPECIFICATIONInputInput voltage90-264VACFrequency range47-63HzInrush current60A Max, 240VAC at max loadLeakage Current0.4A maxEnergy efficiencyVIOutputVoltage5-24VDCCurrent0.1-2A MaxPower12WLoad regulation+/-5%Hold-up time10ms minimun at 115V AC / full loadConnectorDC cable2468 2C 6FT or othersDC plugPer customer requestProtectionsShort circuit protectionYesOver voltage protectionYesOver current protectionYesEnvionmental requirementsOperating Temperature 0-45°CStorage Temperature-20-70°COperating Relative humidity 10-90% RHOthersMTBF50K hours at 25'CLed indicator /Size60*28*36 (L*W*H)Safety ApprovalsUL/cUL/GS/CE/UKCA/CB/C-TICK/CCC/PSE/KO/EMC/FCCStandardsUL62368,IEC/EN62368,FCC part 15 class BComplianceRoHS, PAHS, REACH, 6P, NP,WEEECompany Brief Introduction: Seanen is a technology company specializing in developing, manufacturing and marketing high quality AC/DC adaptors, switching power supplies and chargers. Being professional and dedicated to the industry, Seanen is aim to provide the highest standard products combined with extra safe, high efficiency, high stability ,cost effective and environment-friendly. Our standard products cover the full range items,from 0.5W to 120W output power, safety approved including UL/cUL, TUV-GS, CE, UKCA, C-TICK, PSE, K-mark, CCC, EMC and FCC etc.compliant with DOE VI, RoHS, PAHs, REACH and WEEE.,we can also offer customized service to design the optimal solution to meet the most exacting requirements that your applications demand and put into production promptly. Based on first-class products, competitive price and excellent service, we believe it will be a long term business relationship once you work with us. Seanen, your reliable power partner.    /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
