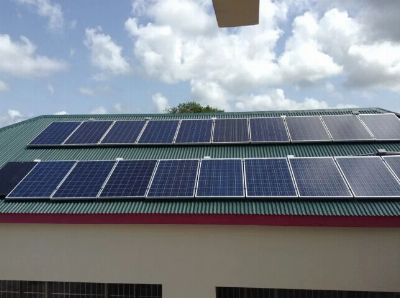

Usage: Take solar panel under sunlight, the energy is stored in battery system box, LED lamp's lighting by getting power from battery system box, the mobile phone can be charged by the system Advantage: solar panel, rechargeable battery ,LED lamps are all green parts in markets No electricity required, energy saving 100%, longer lighting time with LED lights, long life-time with rechargeable battery, no needing charging the product when stored in12 months Function: Solar panel:72V/6400W(18V/200W*32pcs or 36V/300W*22pcs); Battery:lead-acid rechargeable battery in high quality,12V/200Ah*16pcs(total 48V/800Ah) Controller:48V/80A;Inverter 110-240VAC/4KW; Wire:solar panel special used cable 4sqmm;Installation support:electroplate film iron,32pcs;The solar power system can charge the battery fully in 6 hours,and the system provide energy for 4KW loading which works 6hours a day with the output voltage 110-240VAC(Total energy 14400Wh/day) solar system warranty:15 years life-time: more than 35 years Name()TypeNumberUnit PriceTotalRemarksMONO-Solar panel ()BL205M/36.5V 1580*808*35mm24 4.92KW connection: 6 Series, 4 In parallel(:64)Battery ()12V100Ah 32 Gel batteries The total capacity:DC96V/400Ah connection:8Series, 4 In parallel(:84)controller and inverter cabinet()BLU-CI-6KVA1 solar controller and inverter( )MPPTPV support ()BL-S200-122 12 Pcs solar panels use a PV support , Material: Hot -dip galvanized ( 12, )Battery box()BLU-A162 1612V100AH Cable casing()D4050 PV cable,connect bettwen()PV-1*4.0mm2200 PV -specific single-core copper 4.0 mm2 cable,Double protection cover 200M (4,200)Power cable()BVV-1*16mm270 single-core copper 16 mm2 cable,Double protection cover(16,70)package informationVolume of 40 feet container(m3) :54.000 package size (L*W*H)mmpackage weight(kg)package volume (m3) unit weight(kg)unit volume (m3)system total weight(kg)system total volume(m3)number of system(40feet container) 16509004517.000.067408.0001.6042027.0004.72811.440017020032.000.0141024.0000.435100040065050.000.26050.0000.2603800300300170.000.342340.0000.684150090060095.000.810190.0001.620100050500.300.00315.0000.125Agent Support: Company Overseas Department After-sale Service: Company After-sale Service Center /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
