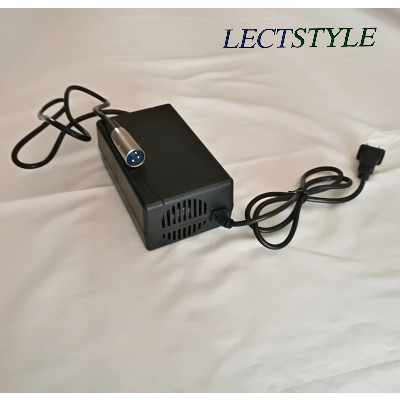

Lead Acid Li-ion Battery Charger on Power Wheelchair Motor

Product DescriptionPower chair XLR mobility scooter charger, LEAD-ACID BATTERY CHARGERInput voltage: 100~240V AC/50Hz                 Output voltage:  24V DC , 3.0A+/-0.2A, (12AH/20AH-22AH)Input power: 120WThis specification applies to sealed Lead-acid battery rechargeable. Charge Battery Model for  24V 12AH and 24V 20~22AHDetailed PhotosProduct ParametersProtect characteristics:1  Timing protecting function: 1)In the normal charge, the total timing of 8 hours (In the power of the start time);2)Time to turn into green light, green light output into the floating state, up to re plug input to recover.2 SCP (Short Circuit Protection):All the charge indicator lights flickered as short circuit the charge output.3 When the output end of the charger and battery polarity reverse connection, close the output.4  An over current from output to return line no damage the power supply. The protection will be enabled if output exceeds 110W(20AH).5 Note:(1).Please read the operational manual careully before using this product.(2).keep away from rain.Useing indoor,sufficient ventilation space must be ensured.(3).Chargeing shall occur high temperature,something do not covered the surface of the charger.(4).Try to avoid oscillation.(5).High voltage inside ,only professional technicians are allowed to dismantle it.   After Sales ServiceOur products can be repaired or replaced the new parts with free cost in three months. Company ProfileOur Core range of DC motors and gearboxes are specifically designed to be interchangeable and versatile, this helps us keep lower stock levels while achieving the customization necessary for so many applications. The core offer has also enabled us to offer excellent pricing levels for low quantities, often prototypes are very expensive due to lack of economies of scale we have tried to help with this as much as possible. HANGZHOU LECTSTYLE can offer bespoke units for larger quantities and offer a Supply Chain service where we work closely with our customers to identify the optimal delivery schedule in accordance with OEM production levels. If you are looking for DC motors. wheelchair motor, charger, joystick controller and gearboxes, you have come to the right place, our expert technical sales staff will recommend the best possible option for both your application and your pocket. Contact us now to discuss your application.HANGZHOU LECTSTYLE TRADE CO., LTD is responsible for exporting the above products, and we also import some important products from oversea markets.Our company has got the right of import and export from the Government department.Please watch our process steps as below(1) process these output shafts(2)process these spur gears and sprockets(3) turning machining(4) assembly preparation(5) assembly workshop(6) inspection test before shipment  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
