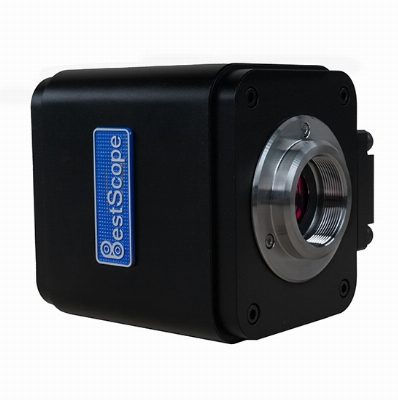

BestScope BWHC-1080BAF Auto Focus WiFi+HDMI CMOS Microscope Camera

IntroductionBWHC-1080BAF/DAF is a multiple interfaces (HDMI+WiFi+SD card) CMOS camera with autofocus function and it adopts ultra-high performance Sony CMOS sensor as the image capture device. HDMI+WiFi are used as the data transfer interface to HDMI display or computer.For HDMI output, The XCamView will be loaded and a camera control panel and toolbar are overlaid on the HDMI screen, in this case, the USB mouse can be used to set the camera. Measure, browse and compare the captured image, playback the video.In HDMI output, the camera embedded Auto/Manual focus function can obtain the clear image at ease. No hand rotation of the microscope Coarse/Fine knob is needed.For WiFi output, unplug the mouse and plug in the USB WiFi adapter, connect the computer WiFi to the camera, then the video stream can be transferred to computer with the advanced software ImageView. With ImageView, you can control the camera, process the image as our other USB series camera.FeaturesThe BWHC-1080BAF/DAF's basic characteristic is as follows:1. All in 1( HDMI+WiFi) C-mount camera with Sony high sensitivity CMOS sensor;2. Auto/Manual focus with the movement of the sensor;3. For HDMI application, with built-in multiple-language XCamView software. The camera characteristic can be controlled by XCamView through the USB mouse. The other basic processing and control can also be realized by the XCamView;4. 1920 × 1080 (1080P) resolutions to match the current high-definition displayer on the market; Support plug and play application;5. For HDMI application, 5.0MP or 2.0MP resolution image (BWHC-1080BAF: 2592*1944, BWHC-1080DAF: 1920*1080) can be captured and saved for browsing; For video, 1080P video stream(asf format) can be captured and saved;6. With the USB WiFi adapter, the BWHC-1080BAF/DAF can be used as WiFi camera, the ImageView advanced image processing software is used to display the video and capture image. support plug and play application;7. Ultra-Fine Color Engine with perfect color reproduction capability (WiFi);8. With advanced video & image processing application ImageView, which including professional image processing such as 2D measurement, HDR, image stitching, EDF(Extended Depth of Focus), image segmentation & count, image stacking, color composite and denoising(USB).ApplicationBWHC-1080BAF/DAF can meet various applications and can be widely used in industrial inspection, education and research, materials analysis, precision measurement, medical analyses etc.The possible applications of BWHC-1080BAF/DAF are as follows:1. Scientific research, education (teaching, demonstration and academic exchanges);2. Digital laboratory, medical research;3. Industrial visual (PCB examination, IC quality control);4. Medical treatment (pathological observation);5. Food (microbial colony observation and counting);6. Aerospace, military (high sophisticated weapons).SpecificationOrder CodeSensor & Size(mm)Pixel(μm)G SensitivityDark SignalFPS/ResolutionBinningExposureBWHC-1080BAF1080P/5M/Sony IMX178(C)1/1.8"(6.22x4.67)2.4x2.4425mv with 1/30s0.15mv with 1/30s30/1920*1080(HDMI)25/1920x1080(WiFi)1x10.03ms~918msBWHC-1080DAF1080P/2M/Sony IMX185(C)1/1.9"(7.20x4.05)3.75x3.751120mv with 1/30s0.15mv with 1/30s60/1920*1080(HDMI)25/1920x1080(WiFi)1x10.06ms~918msC: Color; M: Monochrome; Interface & Button Functions USBUSB Mouse/USB WiFi AdapterHDMIHDMI OutputDC12V12V/1A Power inSDSD Card SlotON/OFFPower On/off SwitchLEDPower IndicatorOther Specification for HDMI OutputUI OperationWith USB Mouse to operate on the embedded XCamViewImage CaptureJPEG Format with 5.0MP(BWHC-1080BAF) or 2.0M Resolution in SD Card (BWHC-1080DAF)Video RecordASF Format 1080P 30fps in SD Card(8G)Camera Control PanelIncluding Exposure, Gain, White Balance, Color Adjustment, Sharpness and Denoising ControlToolbarIncluding Zoom, Mirror, Comparison, Freeze, Cross, Browser Function, Muti-language and XCamView Version InformationOther Specification for WiFi OutputUI OperationImageView Windows OS, or ToupLite on Linux/OSX/Android PlatformWiFi Performance802.11n 150Mbps; RF Power 20dBm(Maximum)Maximum Connected Devices3~6(According to the Environment and Connection Distance)White BalanceAuto White BalanceColor TechniqueUltra-FineTM Color Engine (WiFi)Capture/Control APIStandard SDK for Windows/Linux/Mac(WiFi)Recording SystemStill Picture or Movie (WiFi)Software Environment (for USB2.0 Connection)Operating SystemMicrosoft® Windows® XP / Vista / 7 / 8 / 8.1/10(32 & 64 bit)OSx(Mac OS X)LinuxPC RequirementsCPU: Equal to Intel Core2 2.8GHz or HigherMemory: 4GB or MoreUSB Port: USB2.0 High-speed Port(As Power Only, not as the USB Data Transfer)Display: 19" or LargerCD-ROMOperating EnvironmentOperating Temperature (in Centigrade)-10~ 50Storage Temperature (in Centigrade)-20~ 60Operating Humidity30~80%RHStorage Humidity10~60%RHPower SupplyDC 12V/1A AdapterBWHC-1080BAF/DAF and MicroscopeDimension of BWHC-1080BAF/DAFDimension of BWHC-1080BAF/DAFPacking InformationPacking Information of BWHC-1080B
