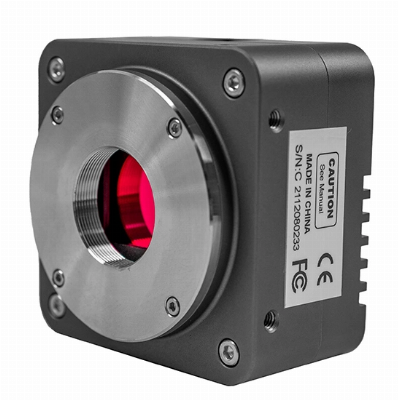

BestScope BUC5D-1601M USB3.0 CMOS Mono Digital Microscope Cameras

IntroductionBUC5D series cameras are ultra-high performance USB3.0 CMOS cameras and they adopt ultra-high performance CMOS sensor as the image capture device and USB3.0 is used as the data transfer interface.BUC5D hardware resolutions range from 3.0M to 14M and come with the integrated zinc aluminum alloy compact housing.BUC5D comes with advanced video & image processing application ImageView; Providing Windows/Linux/ OSX multiple platforms SDK;  DirectShow, Twain Control API.The BUC5D can be widely used in bright field light environment and microscope image capture and analysis with higher frame rate.FeaturesThe basic characteristic of the BUC5D cameras are as follows:1. Standard C-Mount camera with Aptina CMOS sensor;2. With hardware resolution from 3.0MP to 18MP;3. Integrated zinc aluminum alloy housing;4. USB3.0 5 Gbps interface ensuring high frame rate;5. With advanced video & image processing application ImageView;6. Providing Windows/Linux/Mac OS multiple platforms SDK;SpecificationOrder CodeSensor & SizePixel(μm)G ResponsivityDynamic rangeSNRmaxFPS/ResolutionBinningExposureBUC5D-300C3.1M/AR0330(C)1/3" (4.51x3.38)2.2x2.21.9v/lux-sec100dB39dB27.3@2048x153453.3@1024x7701x1, 2x20.1ms~2000msC: Color; M: Monochrome Other Specification for BUC5D CameraSpectral Range380-650nm (with IR-cut Filter)White BalanceROI White Balance/ Manual Temp Tint Adjustment/NA for Monochromatic SensorColor TechniqueUltra-FineTM Color Engine/NA for Monochromatic SensorRecording SystemStill Picture and MovieCooling SystemNaturalOperating EnvironmentOperating Temperature(in Centigrade)-10~ 50Storage Temperature(in Centigrade)-20~ 60Operating Humidity30~80%RHStorage Humidity10~60%RHPower SupplyDC 5V over PC USB PortSoftware EnvironmentOperating SystemMicrosoft® Windows® XP / Vista / 7 / 8 /10 (32 & 64 bit)OSx(Mac OS X)LinuxPC RequirementsCPU: Equal to Intel Core2 2.8GHz or HigherMemory:2GB or MoreUSB Port:USB3..0 High-speed PortDisplay:17" or LargerCD-ROMDimension of BUC5DThe BUC5D series body, made from tough, zinc alloy, ensures a heavy duty, workhorse solution. The camera is designed with a high quality IR-CUT to protect the camera sensor. No moving parts included. These measures ensure a rugged, robust solution with an increased lifespan when compared to other industrial camera solutions.Dimension of BUC5DPacking Information for BUC5DPacking Information of BUC5DStandard Camera Packing ListACarton L:52cm W:32cm H:33cm (20pcs, 12~17Kg/ carton), not shown in the photoBGift box L:15cm W:15cm H:10cm (0.67~0.7Kg/ box)CBUC5D series USB3.0 C-mount CMOS cameraDHigh-speed USB3.0 A male to B male gold-plated connectors cable /2.0mECD (Driver & utilities software, Ø12cm)Optional AccessoryFAdjustable lens adapterC-mount to Dia.23.2mm eyepiece tube(Please choose 1 of them for your microscope)C-mount to Dia.31.75mm eyepiece tube(Please choose 1 of them for your telescope)GFixed lens adaptorC-mount to Dia.23.2mm eyepiece tube(Please choose 1 of them for your microscope)C-Mount to Dia.31.75mm Eyepiece Tube(Please choose 1 of them for your telescope)Note: For F and G optional items, please specify your camera type(C-mount, microscope camera or telescope camera), our engineer will help you to determine the right microscope or telescope camera adapter for your application.H108015(Dia.23.2mm to 30.0mm Ring)/Adaptor rings for 30mm eyepiece tubeI108016(Dia.23.2mm to 30.5mm Ring)/ Adaptor rings for 30.5mm eyepiece tubeJ108017(Dia.23.2mm to 31.75mm Ring)/ Adaptor rings for 31.75mm eyepiece tubeKCalibration kit106011/TS-M1(X=0.01mm/100Div.);106012/TS-M2(X,Y=0.01mm/100Div.);106013/TS-M7(X=0.01mm/100Div., 0.10mm/100Div.)Extension of BUC5D with Microscope or Telescope AdapterExtensionPictureC-mount CameraMachine vision; Medical imaging;Semiconductor equipment; Test instruments;Document scanners; 2D barcode readers;Web camera and security video;Microscope imaging;Microscope CameraTelescope Camera  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
