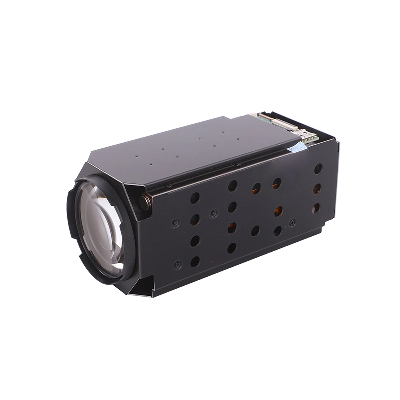

2MP 1/1.8′′cmos 92X Long Range CCTV Digital Camera Module

Support Digital Signal LVDS and Network Signal Video OutputMax Resolution: 2MP (1920×1080), Max Output: Full HD 1920×1080@60fps Live Image Starlight Low Illumination, 0.0005Lux/F1.4(Color),0.0001Lux/F1.4(B/W) ,0 Lux with IR92x Optical Zoom, 16x Digital ZoomICR Automatic Switching, 24 Hours Day and Night MonitorExcellent Low Illumination and Fine Image QualitySupport Predictive Focus and Clear ImageSupport 3A Control (Auto White Balance, Auto Exposure, Auto Focus)Support Backlight Compensation, Automatic Electronic Shutter, Adapt to Different Monitoring EnvironmentSupport 3D Digital Noise Reduction, High Light Suppression, Electronic Image Stabilization, 120dB Optical Width DynamicsSupports Optical Defog, Maximum Improves The Foggy Image Support Bluetooth, WiFi and 4G FunctionsSupport 256G Micro SD / SDHC / SDXC Optional Interfaces for Convenient Function Expansion Small Size and Low Power, Easy to Inset PT Unit, PTZ    SpecificationsCameraImage Sensor1/1.8" Progressive Scan CMOSMinimum IlluminationColor:0.0005 Lux @ (F1.4, AGC ON); B/W:0.0001Lux @ (F1.4, AGC ON) Shutter1/25s to 1/100,000s; Support delayed shutter AperturePIRISDay/Night SwitchICR cut filterDigital zoom16xLensFocal Length6.1-561mm, 92x Optical ZoomAperture RangeF1.4-F4.7Horizontal Field of View65.5-1.1° (wide-tele)Minimum Working Distance100mm-3000mm (wide-tele)Zoom SpeedApproximately 7s (optical, wide-tele)Compression StandardVideo CompressionH.265 / H.264 / MJPEGH.265 TypeMain ProfileH.264 TypeBaseLine Profile / Main Profile / High ProfileVideo Bitrate32 Kbps~16MbpsAudio CompressionG.711a/G.711u/G.722.1/G.726/MP2L2/AAC/PCMAudio Bitrate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/16-64Kbps(AAC)Image(Maximum Resolution:1920*1080)Main Stream50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720); 60Hz: 30fps(1920 × 1080, 1280 × 960, 1280 × 720)Third Stream50Hz: 25fps (704×576); 60Hz: 30fps (704×576)Image SettingsSaturation, Brightness, Contrast and Sharpness can be adjusted via the client-side or browserBLCSupportExposure ModeAE / Aperture Priority / Shutter Priority / Manual ExposureFocus ModeAuto Focus / One Focus / Manual Focus / Semi-Auto FocusArea Exposure / FocusSupportOptical DefogSupportImage StabilizationSupportDay/Night SwitchAutomatic, manual, timing, alarm trigger3D Noise ReductionSupportPicture Overlay SwitchSupport BMP 24-bit image overlay, customizable areaRegion of InterestSupport three streams and four fixed areasNetworkStorage FunctionSupport Micro SD / SDHC / SDXC card (256g) offline local storage, NAS (NFS, SMB / CIFS support)ProtocolsTCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,RTP,RTSP,RTCP,NTP,SMTP,SNMP,IPv6Interface ProtocolONVIF(PROFILE S,PROFILE G)InterfaceExternal Interface36pin FFC (Network port, RS485, RS232, CVBS, SDHC, Alarm In/OutLine In/Out, power)GeneralWorking Temperature-30ºC~60ºC, humidity≤95%(non-condensing)Power supplyDC12V±25%Power consumption2.5W MAX (ICR, 4.5W MAX)Dimensions175.5x75x78mmWeight950g/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
