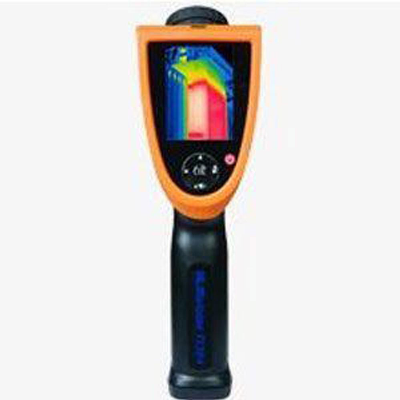

Small Size Handheld Mobile Phone Thermal Image Sensor

Introduction of  Small Size Handheld Mobile Phone Thermal Image Sensor Infrared thermal imager is the use of infrared detectors and optical imaging objective lens to accept the target infrared radiation energy distribution pattern reflected to the photosensitive element on the infrared detector, so as to obtain infrared thermal image, the thermal image is corresponds to the surface of the heat Distribution field. In other words Infrared thermal imager make the invisible infrared energy of the object into a visible thermal image. The different colors above the thermal image represent the different temperatures of the measured object.zmwm02Infrared thermal imager is composed of five major parts:Features of  Small Size Handheld Mobile Phone Thermal Image Sensor 1.Infrared lens: to receive and converge the measured object emission of infrared radiation;2.Infrared detector components: convert the heat radiation model into electrical signals;3. Electronic components:processing the electrical signal x;4. Display components: convert the electrical signal into a visible light image;5.The software: to deal with the collected temperature data, converted into temperature readings and images.Parameter of  Small Size Handheld Mobile Phone Thermal Image Sensor ItemsTechnical SpecificationCC-2Detector characteristicsDetector typeUn-cooled FPA micro-bolometerArray size/format160*120Image characteristicsField of view/min focus distance30°*22.5°Spatial resolution(IFOV)3.3mradThermal sensitivity≤0.1°C@30°CFrame frequency50HzFocusFixedeffective distance≥50mSpectral range8-14umStart-up time≤25s@30°CImage displayLCD260,000 color 3.5" TFT LCD, 640x480MeasurementTemperature ranges-20°C-+ 600°CMeasurement typeFixed spotEmissivity correctionFixedpalettes6palettes changeable(black and white, grey and grey inverted, 3 pseudo-color)Power sourceBattery type(NIMH) battery, rechargeableBattery operating time2 hours continuous operationBattery recharge time≤2 hoursBattery recharge timesMore than 500 timesBattery charging modeIntelligent chargerEnvironmentOperating temperature-15°C-- +50°CShort time operating temperature+50°C-+260°CStorage temperature-40°C- +70°CEncapsulationIP67(1 meter under water)flame retardant ratingUL94-V0Drop test1mPhysical characteristicsWeight≤1.3kgDimension190*128*273mmPhotos of  Small Size Handheld Mobile Phone Thermal Image Sensor    /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
