Industry Gas Engine Helicopter Autopilot Drone Miu GPS Helicopter Flight Control

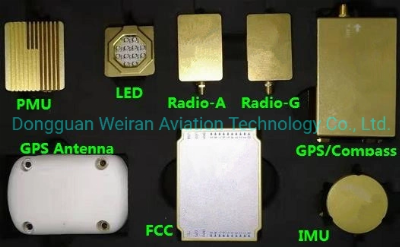

FCS(Flight Control System) of unmanned multiple rotors, unmanned electrical helicopter and unmanned oil-powered(below 250cc) helicopter, is a king of distributed architecture, which is flexible and convenient to expand and upgrade. The Hermit uses industrial-grade components, through strict testing to ensure the reliable operation of the system.   ContentsSpecificationExplainAppropriate aircraft multiplerotors,electrical helicopter and oil-powered(below250cc) helicopter, Recommended takeoff weight less than 50 kg. Supported both ailerons and no ailerons,locking tail, engine speed control Flight control mode Manual ModeSimilar to the traditional modelAttitude ModeThe remote pole corresponds to the aircraft attitude command, and the attitude control is completed by the flight control systemSpeed Mode The operator controls only the aircraft's speed, realizing free flying, while the attitude controlled by the flight controlcomputer. The same as Yamaha RMAX  Distance mode The remote send the instruction to flight, the aircraft move a certain distance automatically, the distance can be set by assistant software. Full Auto ModeIn the fully automatic mode, the flight path is set through the ground station, and the aircraft completes the flight task automatically according to the preset flight pathFunction of flightUniversal: hovering, automatic takeoff, automatic landing, release, return, autonomous exit, task termination, task recovery, altitude release, altitude recovery, command climbing, leveling, descent, left turn, orientation, right turn, speed remote, position remote, point remote, point hovering, conventional return, return landing, cut-in Points of departure, points of departure, routes of entry, points of departure, points of departure, points of departure and landing, etc.Agriculture: automatic planning, route barriers, slope spraying, quantitative spraying, intermittent sprayingflight simulationsupportedFlight protection audible and visual alarmaudible and visual alarm for GPS signalsweak, low voltage and high temperature Out of control protectionautomatic emergency protection for datalink out of control and remote control link out of controlAbility to resist wind5m/sIt depends on the weight of the aircraftData Link2.4GHz,915MHz(840MHz optional)Manual mode: 2.4G automatic frequency remote.Semi-automatic / automatic mode:900MHz(840MHz optional)  Ground Stationdata monitoringMonitoring flight data, supportingdata recording and data playbackcommand controlSend commands to the flight control system to control the aircraft to performthe corresponding actions.Route planningSupport Map Selection and GPS PickingPoints for Route DesignIMUstatic accuracy
