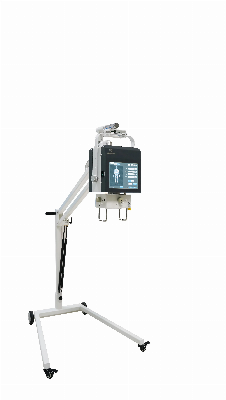

Portable Digital X-ray Machine X-ray Glasses

Hot sales low prices 5kw Mobile portable x-ray machine Radiography Systems Product DescriptionMedical high frequency high voltage Digital Radiography X-ray machine  No.ComponentPerformance parameter1Portable X-ray equipmentHigh-voltage GeneratorOutput Power: 5.3kW   Input Voltage: 220VAC,±10%,50Hz   Inverter Frequency: 100kHz,±5%   kV range: 40kV~125kV   mA range: 10 mA~100 mA   ms range: 1ms~4000 ms   mAs range: 0.1mAs~200mAs   Tech mode: kV-mAs;kV-mA-ms   APR num:2000   Communication Interface: RS-232  TubeNominal X-ray Tube Voltage: 125KV   Nominal Focal Spot Value :0.6mm(Small Focus)  1.8mm(Large Focus)   Target angle: 15°   Target: Tungsten  CollimatorInherent Filtration Al. Equivalent: 1mm AL   Maximum radiation field: 450mm×450mm  overall unitVolume: 450mm×255mm×220mm(include collimator)   Weight: 15kg2Flat Panel DetectorImage Sensor: a-Si (Amorphous Silicon) TFT  Scintillator: CsI:Tl  Effective Array: 3072 ×3072  Pixel Size: 139 um  Effective Area (H x V): 427mm×427mm  Preview Time: 3s  Imaging Time: 5s  Spatial Resolution: 3.6 lp/mm  AD Conversion: 16 bit  Data Interface: Gigabit Ethernet  Trigger Mode: AED(optional)/Software/Prep  Dimension (L × W × H): 460mm×460mm×15mm  Weight: 4kg  Power Consumption: 20W3Mobile standMachine Size (L×W): 1030mm×900mm,±5%  Machine Height Range: 1090mm~2120mm,±5%  Machine Height Adjustment Range: 920mm~1950mm,±5%  Machine Rotation Angle Range: 360°4Laptop/5Dawei DR image acquisition and processing softwareThis software is comprised of following modules which provides a work flow of patient study:Patient Management: including patient registration, work list, study management.Study operation: including bodypart selection, study items selection, image acquiring.Image preview: including display, layout and processing of image. Also tool options for advanced operation.Configuration: including configuration of system, study and user management. Especially the configuration for worklist and storage.  The image processing tools are as follows:Flip vertical, flip horizontal, rotate -90°, rotate 90°, free rotate, window/level change, auto WW/WL, ROI window/level, invert color, image stitching, reject image, zoom in/out, image advanced process, reset the image, invalid image, measure the angle, distance measure, point gray value of the image, ROI magnifier, magnifier, image hint, CTR(cardio-thoracic ratio) tool, arrow tool, copy tool, paste tool, email tool, cobb angle, monitor calibration tool, save as tool, compare tool and inverse compare tool.Other tools: mark left, mark right, mark anterior, text edit, clip tool, clip options tool, ellipse clip tool and delete tool.Clinical Images Company Profilecustomers feedback   /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
