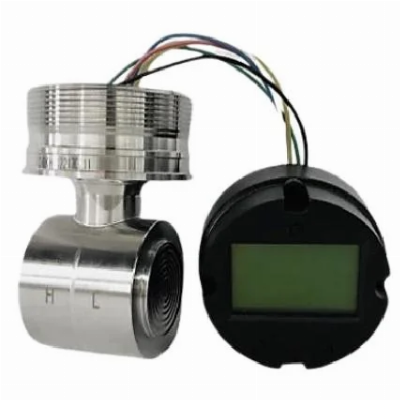

4~20mA with HART Monocrystalline Differential Pressure Sensor Module LCD Display

Product Overview:  The HS-DPS-B-J Differential Pressure Module is a high performance pressure transmitter using the world's most advanced single crystal silicon pressure sensor technology and packaging process. It features a double overload protection diaphragm design and internal circuitry with surge protection for accurate measurement of gauge pressure, absolute pressure, flow, vacuum, level and density.It is suitable for process control in the petroleum, chemical, metallurgical, electric power, food, paper, pharmaceutical, machinery manufacturing, scientific experiments and aviation and industries.  Features:Advanced single crystal silicon differential pressure sensorWide range coverage -0.1~3MPa Two-wire system, 4~20mA, HART protocolIntelligent LCD with backlight Remote transmission and local zero and range adjustmentComplete range, high accuracy, good stabilityHigh static pressure and high overload protectionDouble overload protection diaphragm design  Parameters:  Measuring Range±1kPa;±6kPa;±40kPa;±100kPa;±250kPa;-100kPa~1MPa;-100kPa~3MPaPower Supply24VDCOutput Signal4~20mA+HART Accuracy±0.2%FS ,0.1%FS. Based on pressure range. Ambient Temp-30ºC~80ºC;Medium Temp-40ºC~125ºCStatic Pressure±1kPa; ±6kPa; ±40kPa Hydrostatic pressure resistance 16MPa;±100kPa;-100~250kPaHydrostatic pressure resistance 25MPa;-0.1~1MPa;-0.1~3MPa Hydrostatic pressure resistance 40MPa;Single-sided overload16MPaLong-term Stability0.1%FS/yearDiaphragm material316L, Hastelloy CAir and liquid discharge valve304, 316LO-ringSilicone rubberSealing fluidSilicone oilClamp block304, 316LStructure Drawing:  Ordering Guide:Related Products:Certification:FAQ:1.    Q: Are you manufacturer or trading company?        A: We are manufacturer which focuses on sensor for 10 years.2.    Q: What's your quality control system?        A: MC, ISO9001, CE Certificated.3.    Q: What is the warranty of your products?        A: Our warranty time is 18 months after shipment.  4.     Q: What is lead time of your product?         A: Normally, our factory lead time is within 10~15 working days for products without customization. You can also check lead time detail with our sales depending on different items.  5.     Q: Do you provide customized products?         A: Yes, we can laser mark your logo on products; OEM and ODM customization are welcomed.  6.     Q: What is your MOQ?        A: We have no MOQ limit, small quantity order is acceptable. 7.      Q: What's the transport?                                                                      A: Express such as DHL, FedEx, TNT, UPS for freight prepaid; and we can also use your own courier account to do the freight collect. For more goods we can arrange by air or by Sea.  8.      Q: What is your terms of payment ?           A: We could accept T/T, Paypal, WU./* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
