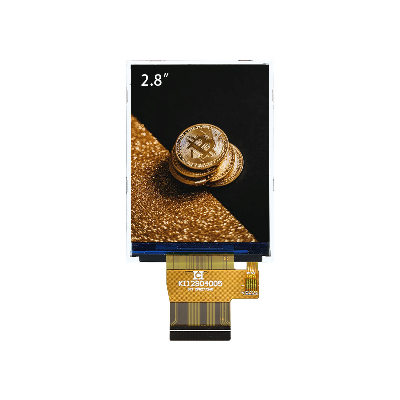

Capacitive Touch 240X320 Spi 2.8 Inch TFT LCD Ili9341 LCD Module

Capacitive Touch 240X320 Spi 2.8 Inch TFT LCD Ili9341 lcd moduleK280I4005 is a 2.8 inch TFT module with optional resistive touch screen and capacitive touch screen control with a resolution of 240×320 pixels. This size TFT LCD monitor is portrait mode with wider viewing angle by POL adjustment, left: 45/right: 45/up: 50/down: 20 degrees (typical).Optional RTP or CTP.This K280I4005 module has built-in ST7789V controller IC, supports MCU interface, the power supply voltage (VCC) range is 3.0V to 3.6V, the brightness is 380 nits (typ), and the contrast ratio is 800:1. This module is instrumentation, handheld Industrial ideal for equipment, etc. The module can operate from -20°C to +70°C; its storage temperature range is -30°C to +80°CDRAWINGSPECIFICATIONSGeneral SpecificationsItemContentsUnitSize2.8inchLCM Dimension50.00(W)* 69.20(H) * 2.45(T)mmLCD Active Area43.20* 57.60mmNumber Of Dots240×320pixelLCD Typea-Si TFT Viewing Direction12 o'clock Driver ICST7789V Interface TypeMCU Operating Temperature-20ºC~ 70ºC Storage Temperature-30ºC~ 80ºC Backlight Type4 LEDs Brightness380Cd/m2InterfaceLCM PIN DefinitionNO.SymbolDescription1NCNC2IOVCCI/O   POWER SUPPLY3-12GNDGround13-20DB7-DB0Data Bus21-25NCNC26RDRead signal, rising-edge-active.27WRWrite signal, rising-edge-trigger.28RSData/Command register address.29CSChip enable, Low-active.30RESETReset pin31-35NCNC36GNDGround37VCIPOWER SUPPLY38NCNC39LEDABACKLIGHT ANODE40LEDKBACKLIGHT CATHODEABOUT USSGS CertificationExperimental equipmentQ: How can I get some samples?A: We don't provide free one, but we can have a discount when you reorder according to different quantity, and you will win at least 3% discount. Q: What is the MOQ?A: It depends on different products. Please keep in touch with sales to confirm the MOQ.Q: How do you control quality?A: All materials we purchase for making any orders are high quality and RoHS compliant, and Control quality with ISO 9001:2001 management system.Advance inspection instrument and equipment to ensure 100% inspection for each and every piece before shipment.Q: Does your product have any warranty?A: Yes, we offer 12 months warranty for our products.Q: What's your payment method?A: Payment: T/T, Paypal, Western Union, etc.For samples: payment in advance.For mass production: 30% deposit and 70% balance before shipment.Q: Do you offer custom solution?A: Yes, we can offer custom solution if standard products couldn't meet buyer' requirements.  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
