High Quality 2-Wires Pressure Temperature Transmitter LCD Displayer LED Displayer

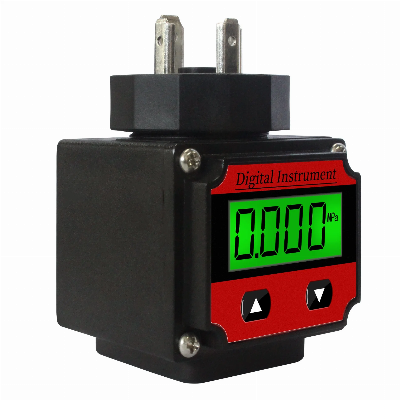

Product DescriptionThe BS-6Y is suitable for all 2-wire/3-wire transmitters, which is powered supply with 2-wire circuit, 3-wire voItage includingPressure, differential pressure, temperature, flow, pH, acceleration and force etc. This product is built in microprocessor, through two key programming, to achieve zero point, full range, decimal point, display rate, control point adjustable Settings, without any potentiometer adjustment.Without external power supply, 4 ~ 20mA /0-10VDC signals in the tested circuit can be accurately displayed by simply connecting them in series in the circuit under test.Its outstanding advantage lies in its pressure drop is much lower than similar products on the market. High brightness LCD display, Data display stable, no jump word.   Features1.2-wires passive way of working.2.Ultra-low operating voltage: when 20mA, voltage is less than 3.0VDC. When 4mA, voltage is less than 2.5VDC. 3.All intelligent working methods.Supports user self-calibration, supports nonlinear correction of display values.4. Highlight 0.36 "LCD display.5. 7 units are available6. Standard hirschamann shape.7.Indicators are superior to similar products. Excellent anti-interference characteristics.8.Extremely low temperature drift, suitable for -40~85 degrees industrial environment.SpecificationWorking type:4~20mA Passive mode/0-10VDCAcquisition resolution:16-digit Binary codeDisplay:0.36" LCD(white)Display range:-1999~9999temperature drift:
