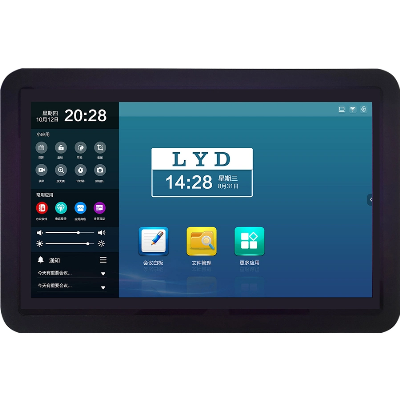

15.6 Inch Rk3568 Android/Linux Industrial Control Touch Screen Motherboard

Product DescriptionRK3568 is a high-performance, low-power quad-core application processor, specially suitable for personal mobile Internet devices and AIoT devices. We provide many embedded powerful hardware engines to optimize the performance of high-end applications. The built-in NPU supports INT8/INT16/FP16/BFP16 mixed operation. In addition, due to its strong compatibility, network models based on a series of frameworks.Product advantages Android 10.0 operating system, compatible with 99% of the industry applications, support independent design APK program installationSupport WIFI/4G/Ethernet and other networking methods to enable remote data transmission, upgrade and updateSupports RS232, RS485, CAN and other communication interfaces for exchanging information with external devicesSupport 1080P language calls and 2 million dual cameraSupport voice and video playIndustrial-grade capacitive touch solution, stronger anti-interference, widely used in a variety of complex industrial scenariosIndustrial embedded installation design for various industriesPassed CE/ROHS certifications and has stable and reliable guaranteApplication industry                              Smart Home                                                                         New energy                                                                   Medical equipment                    Industrial control                                                                          Smart locker                                                                              Smart robot  Motherboard displayProduct ParametersScreen and size parametersDataExplainScreen size type15.6 inchesScreen ratio 16:9Resolution1920*1080 pixels16700,000 true color displayColor260,000 colors-Display size (A.A.)293(L) *163(W) -The size of the whole machine  Backlight brightness350 nit The brightness can be adjusted.Perspective (CR>10)Full perspectivePanel type: IPSBacklight life (hours)30000HrsLED backlightMotherboard core parametersDataDescriptionCPU processorRK35684-core A55 1.8GHzOperating systemV11AndroidRunning memory4GB1.4GB, DDR4EMMC32GBEMMC5.1Touch form5-point capacitive type and single-point optional-TP surface hardness7Mohs hardnessTP light transmittance> 85-Operating voltage and current12V(Typical value)900mAMinimum 8V, maximum 24V, recommend 12V 1A or more DC regulated power supply Power interfaceDC005; Interface parametersDataDescriptionInterfaceDefault first interface:RS232Interface 0,port number:USBttyS0Default second interface:RS232Interface 2,port number:ttyS2Default first interface:RS485Interface 3,port number:ttyS3Default second interface:RS485Interface 0,port number:ttyS0Maximum baud rate:115200USB3.0OTG*1 USBHOST*2, OTG*1 Audio1 channel mono MIC/dual channel HPO (3.5mm earphone), 2 channels mono SPK (4Rx3W)TF card1 roadMaximum 64GEthernet1 road10/100M adaptive network interfaceWIFI1 roadIEEE 802.11Bb/g/n, 2.4G; *Optional*Blue tooth1 roadV4.04G moduleFull Netcom*Optional*GPIO port5 road, default 3.3V supply, 3.3V level bidirectional IO Environmental parametersTypeProjectSpecification and parametersWorking temperature test parametersStorage temperature-30 ~ 80°CWorking temperature-20 ~ 70°CRelative humidity10~90% RHReliability parametersEMCClass B,EN55032ESDLevel 3    /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
