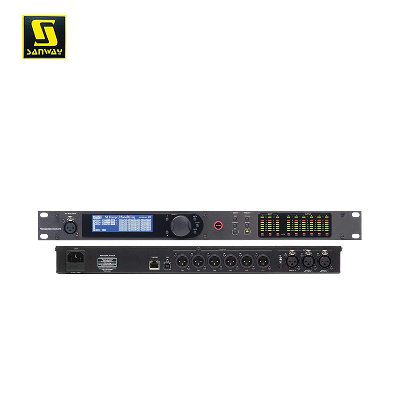

PA360 3in 6out Professional Speaker Sound Management Processor

PA360 3in 6out Professional Speaker Sound Management ProcessorDescription:1>. PA360 3in 6out Professional Speaker Sound Management Processor.2>. PA360 provide all the processing required for optimizing and protecting Front of House, stage monitor, delay fill, and zone loudspeaker systems.3>. The PA360 is perfectly suited for applications such as public address, houses of worship, night clubs, outdoor music events, band rehearsal spaces, theatrical performance venues, touring rigs, or wherever powerful, advanced signal processing, flexibility, and ease-of-use are required for protecting and optimizing a loudspeaker system.Features:1>. high-quality 24-bit A/D and D/A converters;2>. 31-Band Graphic EQ;3>. 12-Band Parametric EQ (with narrow notch capabilities);4>. 12-Band AutoEQs (8 AutoEQ bands, 4 User bands);5>. Backline Delay;6>. Noise Gate.Specification:ANALOG INPUTS Number of Inputs:3 analog line inputs/2 AES digital inputs   (shared connectors), 1 RTA mic inputConnectors:3 female XLRs (2 selectable between   analog/AES digital audio formats), 1 female XLR RTA mic inputType:Electronically balanced/RF filteredImpedance:> 30 kΩ, balanced line to lineMax Input Level (line inputs):> +28 dBu, balanced, ≤1% THDCMRR:> 50 dB @ 1 kHzRTA Mic Preamp Phantom Power:+48 VDCANALOG OUTPUTS Number of Outputs:6 line outputsConnectors:Male XLRTypeElectronically balanced, RF filteredImpedance120 Ω, balanced line to lineMax Output Level+22 dBu, balanced, ≤1% THDAlignment DelayUp to 1000 ms per output channelA/D PERFORMANCE A/D Converter24-bit with dbx Type IV™ Conversion   SystemA/D Dynamic Range:117 dB A-weighted, 114 dB unweighted, 22   kHz BWType IV Dynamic Range:129 dB with transient material,   A-weighted, 22 kHz BW;126 dB with transient material,   unweighted, 22 kHz BW;121 dB typical with program material,   A-weighted, 22 kHz BWD/A PERFORMANCE D/A Converter:24-bitD/A Dynamic Range:116 dB A-weighted, 113 dB unweighted, 22   kHz BWSYSTEM PERFORMANCE Internal Processing Wordlength:32-bit floating pointSupportedS ample Rates:48/96 kHz (32-192 kHz using sample rate   conversion)Dynamic Range:114 dB A-weighted110 dB unweightedTHD+Noise:0.0025% typical at +4 dBu, 1 kHz, 0 dB   input gainFrequency Response:20 Hz - 20 kHz, +0 /- 0.5 dBInterchannel Crosstalk:< -97 dB, -105 dB typical 20-20 kHz,   +4 dBu, all channels measuredLatency:Analog input to output: 2.57 ms (48 kHz),   2.28 ms (96 kHz) Digital AES input to output: 2.31 ms (48 kHz), 2.15 ms (96   kHz)Operating Temperature:0º to 40º C (32º to 104º F)BLU LINK AUDIO Connectors:2 x RJ-45 Ethernet connectorsMaximum Nodes:Up to 60 devicesMaximum Cable Length:100m/328ft on Category 5e or higher cable   between devicesLatency:11/Fs [0.23ms@48k, 0.11ms@96k]Pass Through Latency:4/Fs [0.08ms@48k, 0.04ms@96k]DANTE™ AUDIO Connectors:2 x RJ-45 connectorsMaximum Cable Length:100m/328ft on Category 5 (100Mbps) or   Category 5e/Category 6 (Gigabit) cable between devicesLatency:0.15ms-5.0msPOWER SUPPLY Operating Voltage:100-240 VAC 50/60 HzPower Consumption:30 WattsPHYSICAL Unit Weight:5.48 lbs. (2.49 kg)Shipping Weight7.10 lbs. (3.22 kg)Dimensions:1.75" (H) x 8.0" (D) x 19.0" (W)  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
