PRO Sound Equipment DJ Active Monitor Speakers

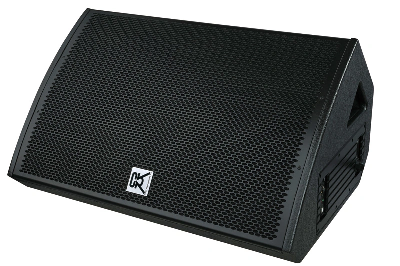

DESCRIPTION and APPLICATIONCV-152MP is a two-way, full range stage monitor speaker system composed of one 15" woofer and one 3" titanium neodymium compression driver. The CV-152MP features a highly efficient power AMP module and incorporate DSP. It combines maximum internal enclosure volume with optimum presentation for near field stage monitor applications.ModelCV-152MPTypeTwo-way, full range monitor systemFrequency Response50Hz -20kHz ± 3dBPower handling400W(RMS)800W(PEAK)Sensitivity100dB(1W@1M)MaxS. P. L126dB(PEAK/1M)LF section15"(380mm) woofer75mm(3in)coilNominal impedance8 ohmHF section3" compression driver with74mm titanium diaphragmNominal impedance8 ohmOutput section2-channelDispersion pattern80° H× 50° VFinishblack paintInput connectors2× NL4MP speakonDimensions750× 400× 520mm(W× H× D)Package dimensions820× 460× 570mm/0.22cbmEnclosureplywoodNet weight31kgGross weight35kgModelCV-152MPTypeTwo-way,full range monitor systemFrequency Response50Hz -20kHz ± 3dBPower handling400W(RMS)800W(PEAK)Sensitivity100dB(1W@1M)MaxS.P.L126dB(PEAK/1M)LF section15"(380mm) woofer75mm(3in)coilNominal impedance8 ohmHF section3" compression driver with74mm titanium diaphragmNominal impedance8 ohmOutput section2-channelDispersion pattern80°H×50°VFinishblack paintInput connectors2×NL4MP speakonDimensions750×400×520mm(W×H×D)Package dimensions820×460×570mm/0.22cbmEnclosureplywoodNet weight31kgGross weight35kg
