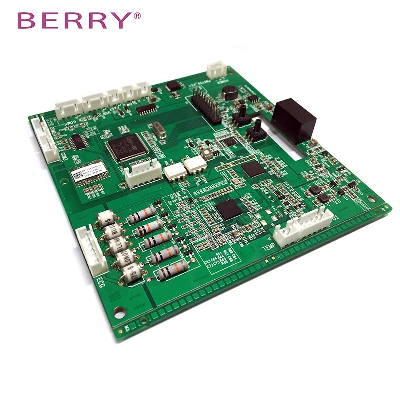

Directly Connecting with PC OEM Monitor Moduel

Small Volume OEM ECG007 Module with Standard AccessoiesModel: ECG 007Feature: Δ  Small volume,flexible installment mode,high reliable and accurate test. Δ  Excellent reliability and clinical monitoring fuction. Δ  It has implemented the monitor of 7 channel ECG, 1channel RESP and2channels temp on the same time. Δ  In accordance with function safety design of CE requirements. Δ  In accordance with all the ecg/temp monitoring work, Δ  Suitable for adult,pediatric and neonate. Δ  Single power 5V work,low power consumption design.   Specification   ECGFull lead: I,II,III ,aVL, aVR, aVF, and   V1,V2,V3,V4,V5,V6Gain: 5mm/mV,10mm/mV,20mm/mV and 40mm/mVScanning speed: Changeable with three grades   12.5mm/s,25mm/s and 50mm/sBand width:0.05Hz-100Hz(3dB)Heart rate: Scope: 1times/minute to 300 times/minutesAccuracy:±1 time/minuteRespChest impedance method or concentration of carbon   dioxide at end of respriationRange:0 time/minute -100 times/minuteAccuracy:   ±2 time/minute-> 60 times/minute(including baby)Detection  precision of respiration rate:±1   time/minuteDetection scope of carbon   oxygen at end of respiration 3mmHg-75mmHg;0.4%vol-9..9% volTempSingle/double pathType: Vascular/surface temperatureScope: 20-50ºCAccuracy:±0.2ºCWorking voltageD.C.5vSize100*80*25mmWeight60gDelivery timeSamples: about 2 daysMass production: about 15 days (2000pieces)OEM: about 25 daysContact us:   Web: berrymedical.en.made-in-china.com Hotline: +86-021-5853 1958 (CN) Shanghai Berry Electronic Tech Co.,Ltd  Professional Manufacturer of Pulse Oximeter,Patient Monitor & Accessories Add: Suit C, 1 Floor, 7th Building, No.1188 Lianhang Road, Minhang District,Shanghai,China /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
