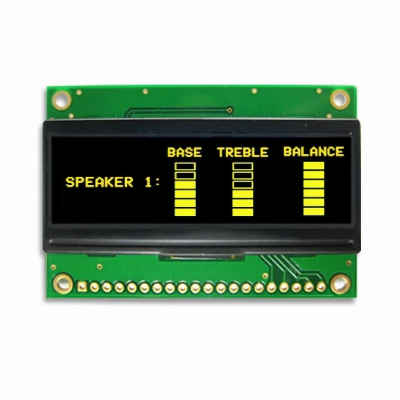

100% Replace Nhd-2.23-12832ucy3 2.23′ ′ 128*32 OLED Display

100% replace NHD-2.23-12832UCY3 2.23'' 128*32 OLED display PRODUCT DESCRIPTION128x32 Graphic OLED Display   |  RYOM223-01Module size: 63.2mm x 43.1mmDriver: SSD1305Modify an OLED display to your exact specifications. Our experts can modify the display's connectors with pin header soldering or customize the display interface with resistors and jumpers. Adjust the size, shape, and pinout of your OLED's cables and PCB to meet your design requirements. 1   Model Number RYOM223-01 2   Resolution 128*32 3   Display color Yellow/White/Blue4   Controller IC SSD13055   Outline Dimensions 63.2*43.1mm6   Active Area 60*18mm 7   Interface Parallel, SPI or I2C interface8   Operating Temp. -20°C~+70°C9   Storage Temp. -30°C~+80°CMORE INFORMATION ABOUT OLED DISPLAYOLED DisplaysLighter, Brighter, and More EfficientOLEDs offer bright, high contrast graphics with faster response times, wider viewing angles, and lower power consumption than conventional LCDs and VFDs. On this page you'll find all of our graphic OLEDs, available in character type and graphic types with screen sizes ranging from 0.95" to 3.12" and resolutions from 96x64 pixels to 256x64 pixels. Character OLED displays range from 2-line by 16 characters to 4-line by 20 characters and are available in a variety of colors including green, yellow, blue, white, and full color.DETAILED IMAGESPRODUCT APPLICATIONCable CustomizationAdjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that's precisely designed to make your connections streamlined and secure. Connector CustomizationEasily modify any connectors on your display to meet your application's requirements. Our engineers are able to perform soldering for pin headers, boxed headers, right angle headers, and any other connectors which your display may require. Interface CustomizationChoose from a wide selection of interface options or talk to our experts to select the best one for your project. We can incorporate HDMI, USB, SPI, VGA and more into your display to achieve your design goals. PCB ModificationsChange the shape, size, pinout, and component layout of your PCB to make it a perfect fit for your application.2.23 inch monochrome graphic OLED display module with PCB introduction:Mono graphic OLED screen 2.23inch with PCB 128x32 pixels is mono oled display module, 128x32 pixels mono oled display screen.The 2.23 inch monochrome oled display with PCB, is a graphic passive matrix oled display, it have 128x32 dots, wide viewing angle, wide temperature, high brightness, high contrast, fast response time. Mono graphic OLED display module screen-2.23inch oled screen with PCB:because it is OLED display module, oled could be emitting light by itself, no need for backlight, so oled display module would be thinner than TFT LCD module,and it don't like tft lcd, oled display have no viewing angle limited, OLED display is wide/full viewing angle, oled display have excellent display performance in all viewing angle.2.23'' 128x32 OLED lcd display module with PCB could be displayed in wide temperature, its working temperature could be reached to -40 degree, and 80 degree.2.23 inch OLED screen with PCB 128x32 dots is the best display solution in the outdoor display, such as sunlight environment, and also for industrial or medical application that need the wide viewing angle and high brightness display./* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
