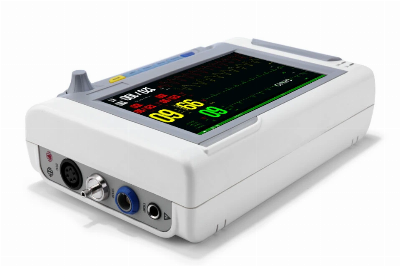

Sinnor 7 Inch TFT Display Cardiac Multi Parameter Patient Monitor

Sinnor 7 inch OEM Touch Screen Multi Parameter Patient MonitorDisplay: 7'color TFT screen, high resolution: 800×600 dpi; 6 Parameters: Standard - 5-lead ECG/HR, NIBP, SPO2, Temp., Resp., PR; Optional Touch Screen, Printer, :3/12-lead ECG, single/double IBP, double Temp., Sun Tech NIBP, Masimo/Nellcor Spo2, ETCO2,BIS,CO; Patient Range: Suitable for Adult, Pediatric, Neonate; Multi-display interface: Standard, Large font, Trend Coexist, OxyCRG dynamic, 7 full ECG waveforms; Language: Built-in 8 language for choose (English, Chinese, Turkish, Spanish, French, Russian, German, Italian); Review: Maximum 720h tabular and graphic trends of all parameters, 1000NIBP records and 200 alarm event; Battery: Built-in 2 hours rechargeable lithium battery, and battery volume display. 4 hours rechargeable lithium battery (optional); Network: TCP/IP networking platform, connect with central monitoring system. Wifi central monitoring system (optional). Advance patient Manage: gender, full name, ID no., room no., bed no., weight,height, blood type, paced or not, remakes; Multi-parameter board: Separated parameter board, main board, ECG board, SPO2 board, and NIBP board are independent; Interface: Color, layout of each parameters can be set up by user need, bed to bed view display(optional); Fanless: Use special fanless cooling technology in the device to provide users quiet environment; Standby: Unique standby mode for energy saving and suspend monitoring; Time delay: Time delay switch-off function to save data when monitor turn off suddenly; Easy software update: Users can update monitor software by themselves; Analysis: Real time S-T segment analysis, and 20 type arrhythmic analysis; SpO2 Pitch Tone Variation, Drug Dose Calculation and Hemodynamic Calculations; Storage: external SD card slot enables memory extension(optional); Data transfer: USB port to allow to transfer patient data to a PC (optional); Special SINNOR F-6 Spo2 technology: which is as correct as Nellcor spo2 but cheaper than it(optional); Resistance to interference : Efficient resistance to interference of defibrillator and HF knife; ECG Input3/5 wire ECG cableLead sectionI II III aVR, aVL, aVF, VGain selection*0.25, *0.5, *1, *1.2Sweep speed6.25mm/s, 12.5mm/s, 25mm/s, 50mm/sHeart rate range15-30bpmCalibration±1mvAccuracy±1bpm or ±1% (select the bigger data)NIBP Test methodOscillometerPhilosophyAdult, Pediatric and NeonateMeasurement typeSystolic Diastolic MeanMeasurement parameterAutomatic, Continuous measurementMeasurement method ManualmmHg or ±2%SPO2 Display TypeWaveform, DataMeasurement range0-100%Accuracy±3% (between 70%-100%)Pulse rate range20-300bpmAccuracy±1bpm or ±2% (select the bigger data)Resolution1bpm2-Temperature (Rectal & Surface) Number of channels2 channelsMeasurement range0-50ºCAccuracy±0.2ºCDisplayT1, T2, TUnitºC/ºF selectionRefresh cycle1s-2sRespiration (Impedance & Nasal Tube) Measurement type0-150rpmAccuracy±1bm or ±5%, select the bigger dataResolution1rpmPacking Information Packing size37*37*28cmN.W.6kg/7kgG.WStandard Accessories supplies1. 5 lead ECG cable---------------------------------------- 1set2. Adult Spo2 probe--------------------------------------- 1set3. Adult NIBP Cuff and extension tube---------------- 1set4. Temp probe----------------------------------------------- 1set5. Ground connecting liner------------------------------- 1set6. ECG Chest electrode (10pcs/pack)------------------ 1pack7.2200mA lithium battery--------------------------------- 1PCS. Sinnor Instruments, Inc., local in Shenzhen China, is a specialized manufacturer for Patient Monitor. The main products of our company are Multi-Parameters Patient Monitor, Vital Signs Monitor, CTG Fetal/Maternal Monitor, Pulse Oximeter and so on. Sinnor has a high level R&D team. We are committed to providing the excellent medical equipment and perfect service to our partners and end-users. The company also offers OEM and ODM solutions to its customers by providing complete patient monitor systems, SKD sets, and modules. Thanks to the high quality products and excellent after-sale services, Sinnor products have been widerly recognized by the medical specialists and welcomed by the customers across the country already. In the new century, Sinnor has founded an extensive worldwide sales and service network and extended its service to hospitals and healthcare teams by working closely with local dealers and distributors. We are selling the products over 30 countries around the world and also have the ability to win the oversea tender. Up to now, there are almost 20.000 satisfied customers using our products and services. We expect more and more world-wide partners to enjoy the cooperation with us on the basis of mutual-beneficial relationship. 1. DurableMonitor is made of ABS+PC Fireproof Materials2. Ultra-thin design8.9cm thick, smaller footprint3. Low consumptionAdopted by the design of fanless, heat fast.4. Quality assurance have passed CE approval.5.Silicone buttonAdopted by
