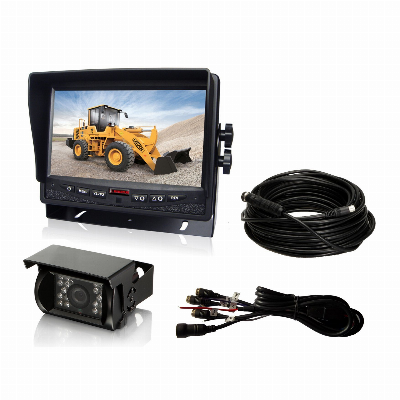

7 Inch TFT LCD Monitor with Backup CCD Camera

Product Info. (Model: MS-708RSC)Mainly feature:1. Input voltages available from DC10V -36V with audio 2.  Mirror/no mirror could be set separately in each channel 3.  With dimming function(day and night mode) 4.  Could be connected with 3 cameras for side view and Rear view. 5.  With 3 Auto triggers  6.  A variety of installation: headrest, U shape bracket, Fan shape mount 7. The button on the monitor have blue light in dark automatically. 8.  User could adjust the OSD menu:    a. could rename each channel    b. could adjust the delay time in each channel.    c. could adjust trigger name on each channel    d. brightness, contrast, audio mirror could be adjust in each channel    e. could adjust the grid line left and right, up and down 9.  Built to withstand the shock and vibration associated with industrial applications. 10.  Dust and Waterproof design,all connectors are waterproof. 11.  Meet the requirements for hot,cold weather also shock and vibration. 12.  20G force for vibration an 100G for shock. Specifications of monitor:Monitor type: TFT LCD Screen size: 7inch Dot resolution: 800*3(RGB)*480 Display format/contrast: 16:9/500:1 Display brightness: 400CD/ Viewing angle: U: 50° D: 60° L/R: 70° Video input: 3Channel Video source: 1VP-P, 75Ω Power supply: DC12V-24V Power consumption: 5W Operating temperature: -30ºC~+80ºC Video system: Auto NTSC/PAL Overall dimensions: 7''(L)*5''(H)*1''(W) Specifications of Camera:Sensor: 1/4'' Sharp color CCD Picture elements: 250000pixels Gamma correction: R=0.45 TO 1.0 Image sensor: 600Tvline  Lens: 2.1MM View angle: 130degree Sync system: Internal synchronization Infra-red distance: 50 feet(18 Infrared) Usable illumination: 0Lux Power source: DC12V-24V Electronic IRIS: 1/50. 160-1/100000sec Video output: 1Vp-p, 75Ω IR switch control: ACDS automatic control Vibration and shock rating: 20G/100G Operating temperature: -40ºC~+80ºC Storage temperature: -40ºC~+60ºC Application:Bus, Truck, Tractor, Forklift, Mixer,Carriage ect commercial vehicle .Factory Overview:1. Factory base cover an area of 35,000 suqare meter industiral park in Huizhou city, Guangdong province.2. Integrated ability with development ,production, SMT, marketing,after-sale service.3.Cetified with ISO9001:2015, IATF16949:2016 quality system and establish PLM & EMS production process.4. Experimental capabilities: Waterproof , High & Low temperature cycling,Vibration, Image optical analysis           test, Salt spray tester, Swing tester... 5.Product pass EMC/EMI, E-mark, CE, the United States FCC, UL certification. 6. Over 15 years of OEM / ODM experience. 7. Quick response to customers' inquires and technical support, best after-sale service .   /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
