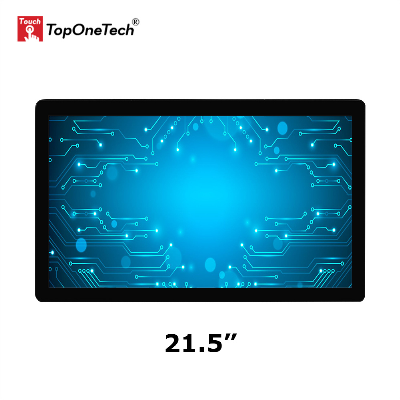

21.5 Inch Elo Gaming Open Frame Touch Screen Monitor

TopOneTech's 21.5"  open frame LCD touchmonitors have a long-lasting product cycle because the enclosure is controlled by TopOneTech's specifications. Future panel improvements are therefore possible without external changes. The TOT215SAW001 integrate with the TopOneTech's PCT technology touchscreen.Specifications:Part Number(s)SAW (Worldwide) -TOT215SAW001Enclosure ColorSilverTouch Technology & CapacitySAW (Surface Acoustic Wave) - 10 TouchTouch InterfaceSAW - USB 2.0Diagonal Size22'' diagonal, Active matrix TFT LCD (LED)On Screen DisplayAccessible through switches on the unit's keypad (OSD Control).Controls: Menu, Up, Down, Select, PowerSettings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Sharpness, Color Temperature, OSD Timeout, OSD Language, OSD H-Position, OSD V-Position, Recall Defaults, Video Priority, Information, Touch On Sleep Mode, Touch ThruLanguages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, JapaneseLockouts: OSD, PowerAspect Ratio16:9Active Area (mm)18.78" × 11.81"/ 477mm × 300mmResolution1680× 1050Viewing AngleHorizontal: ±85° or 170° totalVertical: ±80° or 160° totalNumber of Colors16.7 millionBrightness (typical)LCD panel: 250 nitsSAW: 215 nitsResponse Time-total (typical)3.5 msecContrast Ratio1000:1Input Video FormatHDMI V1.3 Type A receptacle for HDMI inputAnalog VGA on Female DB-15 connectorInput Video FrequencyHorizontal: 37.8 - 68.4 KHzVertical: 60 - 75 HzVideo InterfaceHDMI, VGA ,or DVI,or Display PortPower SupplyPower cord and power brick (sold together)Input Voltage12VDC +/- 5%Power Consumption (Typical)Monitor + Adapter at 100-240V/50-60HzON: 17.8 WSLEEP: 1.5 WOFF: 0.5WDimensions19.68" × 12.91" × 2.06" / 500mm x 328mm x 52.4mmShipping Box Dimensions24.02" × 17.32" × 6.69" / 610mm × 440m × 170mmWeight (Unpackaged)13.13 lbs / 5.5 Kg (1 Piece)Weight (Packaged)14.55 lbs / 6.6 Kg (1 Piece)Operating Temperature0°C to 45°C / 32°F to 113°FStorage Temperature-20°C to 55°C / -4°F to 131°FHumidityOperating: 20% to 80%Storage: 10% to 90%SealabilityTouchscreen sealed to bezelTouchscreen sealed to LCDMTBF50,000 hours demonstratedWarranty1-yearExtended Warranty Options2 year warranty coverage -(Optional)3 year warranty coverage - (Optional)Regulatory approvals and declarationsEurope CE TUV,EuropeRoHS,Europe ERP; United States FCC; Mounting Options75 mm and 100 mm VESA mount (Total Modeles)2-hole mounting interface on all 4 sidesRear mount (SAW Models see Part Numbers for details) Front mount (IntelliTouch Models see Part Numbers for details)Rack mount with optional kit (IntelliTouch Models see Part Numbers for details)Flush mount with included brackets (SAW Models see Part Numbers for details)What's in the BoxHDMI cableVGA CableTouch USB CablePower brick(1A,3A,4A optional)Power Cord (European,North America,UK,Australia,China optional)For Bezeled: "L" (Side Mount) Brackets and w/Screws(SAW touch monitor)LED lights remote control (Open frame monitor with LED lights around for Casino device)Quick Install GuideMechanical Dimensions      /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
