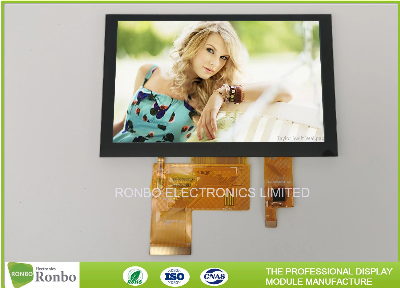

Standard Pcap Touch IPS TFT LCD Modules 5" 800X480 Touch IC Gt911

Standard PCAP Touch IPS TFT LCD Modules 5" 800x480 Touch IC GT911Product Specification:CTP structure explanation:* P+G=PET+Glass (cover lens is PET and touch sensor is glass).* G+G=Glass+Glass (cover lens is glass and touch sensor is glass).* G+F/F=Glass+Film+Film (cover lens is glass and touch sensor is film+film).* CG= Cover Glass, OD= Outside Dimension, VA= Viewing Area.LCD and CTP Specification:* It is a TFT LCD Display bonding with Capacitive Touch Screen.* Backlight with different brightness is customized according to your request.* It is Standard TFT LCD Module and Capacitive Touch Screen.* It can be customized for LCD and Touch screen.* Experienced Team for Your Custom Solution.* RoHS compliant.Main SpecificationModel NO.:RB050D40N05A-IPS-GG23CScreen Size:5.0"Display typeIPSResolution:800*480Viewing direction:ALLModule size(W*H*T):120.7*75.9*4.9mmActive area (W*H):108.0*64.8mmBrightness:400cd/m²Operating Temperature:-20 ~ +70ºCStorage Temperature:-30 ~ +80ºCLCD SpecificationController:--Backlight:6S2P=12 WLED, If=40mA, Vf=19.2VContrast500Interface:RGBPin NO:50PinPin pitch0.5mmConnecting typeFPC ConnectorCTP SpecificationTouch typeMulti-touch capacitive touch panelStructure:G+GSurface Treatment:CustomizedSensor/CG Thickness:1.1/0.55mmTotal Thickness:1.85mm (don't including Double Tape)Controller:GT911Touch Action Force:30~60gOperating Voltage::2.8V~3.3VTransmittance:≥86%Surface Hardness:≥6HInterface:IICPin NO:10PinPin pitch0.5mmConnecting typeFPC ConnectorOperating system support:Linux, Android, WindowsCustom Projected Capacitive Touch Screen:Our capacitive touch panel design can be suitable for housing design from the customers to cover their lens or replace the physical buttons on its original module.we are also capable of doing the customized shape needed to suit for customer's mechanical design.With the assistance of the simulation software, equipment with high accuracy and simplifying assembly process, we are capable of making the sample in shorter period and with lower development charge.                   Lens's Features> Shape: Irregular and hole> Color: Silk printing, Logo> Glass brand: AGC, Corning, CSG, ETC> Treatments: AG, AR, AF, Anti-explosion> Thickness: 0.55mm, 0.7mm,1.0mm, 1.1mm, 1.8mm, 2.0mm, 3.0mm, 4.0mm                 Sensor Features> Sensor material: Glass, Film,Film + Film> Thickness:0.125mm,0.4mm, 0.55mm, 0.7mm, 1.1mm> FPC: Shape design optional> IC: Focaltech, Goodix, Cypress, EETI> Interface: IIC, USB, RS232, SPI                Assembly> Optical Bonding with OCA> Double faced adhesive tapeProduct Application:Telecommunication DevicesTelephone, Interphone, Smart Watch, Tablet PC, PDAConsumer ProductsCamera, DVD Player, Cell Phone, Game Player, Digital Photo Frame, E-Book Reader, Mp3 Player, MP4 PMP, Netbook PCTechnical EquipmentElevator Controller, Industrial Machine, Security Monitor, POSOffice AutomationPrinter, Scanner, Fax Machine, Desktop Monitor, Desktop MonitorHome AppliancesAir-condition Display, Refrigerator, Video Doorbell, Smart MachineAutomobile DisplayGPS, Protable Navigation, Video Player, Speedometer, RecorderIT ProductsDigital Video, Media Player, Advertising MachineMedical EquipmentUltrasound Machine, Medial Monitor, Medical Imaging, HealthcarePackaging & Shipping & DeliveryPackaging Details: All the products are packed in right way to keep it safe.For small sizes of products we use tray + carton,For bigger sizes we use foam slot + carton.we also design packages according to customers' requirementsShipping Details:For small quantity orders: we ship by UPS Air-Express, or DHL/FEDEX/TNT/ EMS Express service, it is safe and fast.  For large quantity orders: we ship by buyer's cargo agent in China,  we can also ship by air or sea transportation by our cargo agent.Delivery Details:Ready-made Sample: within 1 weekCustom Sample: 1~2 weeksMass production: 3-4 weeksOur Company:Ronbo Electronics Ltd., is one of the leading display suppliers. Its production line includes small to medium size LCD, TFT and IPS modules for a variety of industrial and consumable application. We are one of the leading display providers of character LCD modules, graphic LCD modules, TFT & IPS modules and Touch Screen. High-quality LCD modules are made based on our experienced engineering knowledge, well-managed supply chain.Moreover, our company has passed ISO 9001 certifications as well as RoHS.By adopting computerized management system, automatic manufacturing process and advanced technology, we can able to continuously supporting our worldwide customers with qualified and reliable products. Our Advantage:Rich experienceGood knowledge of the displays market to put together solutions that add value and provide a unique proposition for the clientAdvanced EquipmentFull automatic FPC&IC bonding machine, film attaching machine, CNC machine, polish machine advance production equipment ensure product qualityQuality AssuranceAdvance inspection instrument and equipment to ensure 100% inspection
