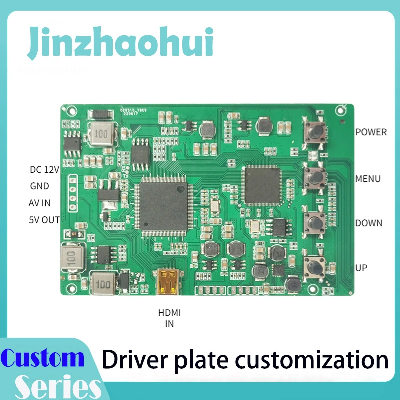

Driver Board Solution 5.5 "Multifunctional Board

Product overviewThe board card is for 5.5 "FHD AMOLED The driver card made by the display screen rotates the 720*1280 vertical display sequence by 90 degrees through the chip processing The screen resolution is 1280*720@60HZ. * Input voltage: 7.2 V-12V (wide voltage) * Input signal: one HDMI signal (HDMI1.4 HDCP support version 2.0) * Input signal: one CVBS signal (can be connected to infrared night vision device, camera) * Output LCD signal: MIPI 4 Lanes * Support 3.7-4.2V lithium battery charging (can charge night vision) * Support (3-cell battery icon) detection * Supports OSD customization Control board PCB related dimensions and specifications1.PCB thickness + height of highest part ≤5.5mm 2, PCB length =85mm 3, PCB width =55mm 4, PCB board thickness =1mm Screw hole specification: diameter 1.5mm screw hole size and coordinates see the structure drawingFunctional characteristics  Support signalHDMI480i,480p,576i,576p,720p,1080i,1080p Support signalCVBSAV signal Motherboard interfaceInputHDMIType C HDMI Patch Mother 19Pin Patch (Horizontal)Motherboard interfaceInputCVBSDIP,4P=2.0MM mother base (horizontal)Motherboard interfaceBattery interface2P-2.0DIP,4P=2.0MM mother base (horizontal)Motherboard interfaceLCD interfaceMIPI 61PFPC-0.3-61PIN (Horizontal)AudioDo not support  Power supplyInput power supplyDC 7.2-12V(+/-0.5V) Power supplyDrive screen voltage3.3V Power supplyPower operationThe power-on display is displayed Power supplyMotherboard standby power consumption
