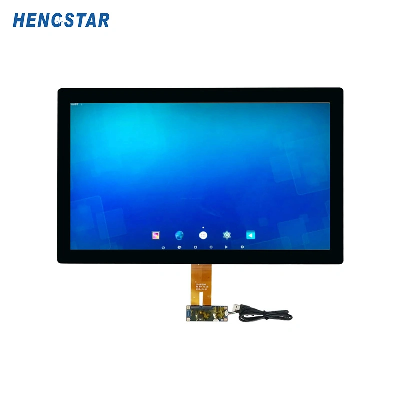

Full Fit of LCD Touch Screen Industrial Smart Module Accessories

Hengstar Series Full Fit of LCD & Touch Screen TCP+LCM Specification-- Key Feature1)Fully bonded of LCD Panel & Touch Screen with water glue, Dustproof and Waterproof Design;2)Mohs 7 level explosion-proof glass, Excellent heat dissipation hole;3)10 Multi-point Capacitive Touchscreen & Full HD Resolution;4)1000nits Industrial LCD Panel, FHD AAS moed5)Multiple Interfaces, support 1080p full HD no loss signal transfer, meet any needs of high definition signal transfer6)Support Panel IP65 waterproof grade designFully bonded of LCD Panel & Touch Screen MechanicalPrecautions-- StorageStore the products at the normal temperature and humidity environment, the required temperature is 23°C,and the required humidity is 60%±5 .Care not to expose the products to the direct sunlight or stresses. To avoid product contact with water,organic solvents,acid and sulfuric acid compounds.-- HandlingTransparency is an important factor for the product. So, please wear,clean finger sacks,gloves and mask to protect the products from fingerprint or stain attach , and also hold the portion outside , the view able area when handling the panel.Do not handle the product by holding the tail cable portion in order to assure the reliability.-- Do not put one product on the other. Otherwise, it may cause the product to be scratched and/or change on cosmetic occur.Do not put a heavy, hard or sharp object on the product.Can not pull hard FPC,to avoid bad electrical connection inside the product;not twisted and bent FPC output,so as to avoid adverse FPC connection to the controller.Can not bend and break the product.-- AssemblingDoes not touch too much pressure is applied to the product cause injury.Try to avoid static electricity installe.  Physical Drawing After Fitting (TCP)LCD Module SpecificationApplication / Customer Success Case/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
