500W Emergency Voice Evacuation System with 10 Zone Speaker Outputs

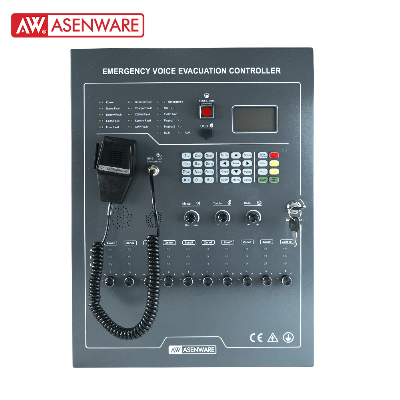

Description of AW-EVC500 emergency voice evacuation controller:AW-EVC500 emergency voice evacuation controller is suitable for communication and dispatch in case of fire or emergency in the building. When a fire occurs in the application scene, the emergency evacuation audio will be played, and the on-site personnel can make a speaker call through the controller microphone to schedule the on-site evacuation. AW-EVC500 emergency voice evacuation controller adopts 3.2-inch LCD screen, silicone button operation, simple interaction operation, and the interactive page is simple and beautiful. The device has 10 zones of speaker output interfaces, 10 zones of fire detection input interfaces, 1 zone of AUX input interface, 1 CAN interface, 1 USB interface, 1 microphone, 2 zones of fault output interfaces, and 2 zones of fire alarm output interfaces.   Features :1.3.2-inch LCD screen operation2.Silicone buttons, beautiful appearance, good using experience and long service life3.1 USB interface, which can be used to import and export data when configuring the controller information, or play the audio in the USB, and the internal TF card stores the alarm voice, which can be used when needed4.There are 10 zones of speaker output interfaces in total. There are 3 knobs on the main panel to adjust the volume, high tone and low tone of the speaker audio output respectively. In addition to the general adjustment knob, each voice section has a knob for 4-level volume range adjustment. Each speaker has a setting page that can be individually switched on and off5.There are 10 zones of fire detection input, which are activated one by one with the 10 zones of speaker zones when the fire alarm is triggered 6.1 CAN communication interface, which can be linked with other panel fire alarms, and the speaker zone that needs to be activated can be set on the setting page7.1-zone background music AUX input interface, 1- zone USB MP3 audio source interface, 2- zone front audio source signal output interface, the front audio source output port can be used as an external speaker power amplifier audio source input for extended output8.1 monitoring speaker, which can monitor the audio of the input audio source9.Support AC power supply and 24V battery power supply, can automatically identify and switch, AC power supply priority10.A red alarm button is used to speaker alarms in emergency, open all zones, and output emergency signals to the speakers in each zone   itemAW-EVC500 emergency voice evacuation controllerPlace of OriginChinaProvinceGuangdongBrand NameAsenwareModel NumberAW-EVC500ModelAW-EVC500Rated input voltage230VAC(±15%),50Hz/60HzStandby batteryTwo 12V/12Ah lead-acid batteries in seriesWorking environmentRelative humidity (
