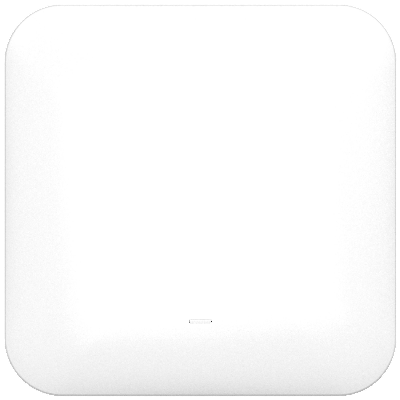

Cost Effective 11ax 1800Mbps Ceiling Wireless Ap

Cost Effective 11ax 1800Mbps Ceiling Wireless APProduct DescriptionAX820 is an economic 11ax Wi-Fi standard Ceiling Wireless Access Point based on MTK platform for home, hotel applications.Combined 1800Mbps Wi-Fi speed over 2 radios: 2.4GHz(600Mbps 11ax 2*2)+5GHz(1200Mbps 2*2), equipped Gigabit WAN & LAN ports, support MU-MIMO and DL/UL-OFDMA modulation, Wave2.0 and Seamless roaming, it provide high speed Ethernet data rate and allow more users access, then multiple users can upload or download multiple packets at same time, narrower subcarrier spacing and longer symbol time, improved the stability and data processing efficiency, publicly to be used in high density access environment such as university campus, concert venue, gymnasium, etc. Main Features: Comply with IEEE 802.11ax/ac/b/g/n, dual band, 1800Mbps Data RateWith MTK chipset , Flash: SPI NOR 16MB + NAND 256MB, greatly improved the data processing performance and allow more end users access1*10/100/1000Mbps WAN Port, 1*10/100/1000Mbps LAN Port, faster Ethernet.Support active IEEE 802.3af/at 48V PoE standardComply with IEEE 802.3az standard, RF power adjustment and frequency analyzer for better application in different environment            Support Seamless Roaming, OFDMA,1024-QAMHardware Specs:Hardware: ChipsetMT7621A+MT7905N+MT7975DNStandard802.11ax/ac/b/g/nFlashSPI NOR 16MB Memory256MB2.4G Frequency2.4GHz - 2.484GHz2.4G Wi-Fi standard802.11b/g/n/ac/ax5.8G Frequency5150~5850MHz5.8G Wi-Fi Standard802.11 a/n/ac/axInterface1 * 10/100 /1000 RJ45 WAN Port1 * 10/100 /1000 RJ45 LAN Port1 * Reset button, press 10 seconds to revert to default settingUSB3.0 and Bluetooth are optional if need.AntennaBuild in 4dBi MIMO AntennaData Rate1800MbpsEnd Users120+RF Power≤ 18dBmDC12V----1.5APoE48V (IEEE 802.3af/at)LED lightSys and WiFi, WAN, LANPower Consumption≤ 15WSize168mmX168mmX32mmWeight Others:Package Contents1800Mbps Dual Band wireless access point Ethernet Cable                                             Quick Installation GuideInstallation AccessoryEnvironmentOperating Temperature: -20~45 ºC Limit working temperature: -30~70 ºC Storage Temperature: -40~70 ºCHumidity: 5%~95% non-condensing    Working Diagram:/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
