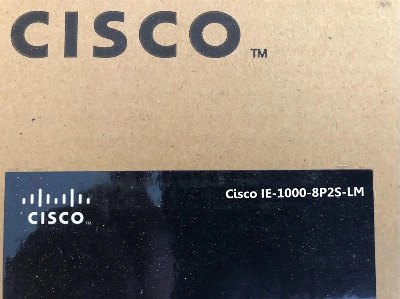

Cisco Ie-1000-8p2s-Lm Industrial Ethernet 1000 Series Ethernet Switch

     IE-1000-8P2S-LM SpecificationForwarding Bandwidth• Max:2.8GbpsSwitching Bandwidth• Max:5.6GbpsHardwar• DRAM: 128 MB DDR2 without ECC• Onboard flash memory: 160 MBAlarm• Alarm I/O: output connector on top panel of 4P2S and 8P2S, 1.0A@24VDC or 0.5A@48VDCPower consumptionWithout PoE 10.6W, with PoE 134.4-205.2WConnectors and cabling• 100BASE-FX MMF (2 km)-TBD with engineer input• 10/100/1000BASE-T ports: RJ-45 connectors, 4-pair Category 5 UTP cablingDimensions (H x W x D)including DIN rail5.0"H x 1.8" W x 5.3"D (127mm H x 45.7mmW x 134mm D)Software features LLDP, Cisco CDP aware, MSTP, STP Portfast, ICMP Vlans, static IP, Trust Ingress DSCP, COS, Priority Port, port - security, IGMP querier, DHCP server SNMP v2/v3, SNMP traps, syslog, IGMP snooping, DHCP snooping, BPDU guard, Etherchannel, Alarms, PoE capability, Smartport Macro, SPAN/Port Mirroring, Strom Control, EtherNet/IP (EDS)Safety Certifications  • UL/CSA 60950-1• EN 60950-1• CB to IEC 60950-1 (with country deviations)• NOM to NOM-019-SCF1 (through partners and distributors)• UL/CSA/IEC/EN 61010-2-201• CE MarkingHazardous Locations  • ANSI/ISA 12.12.01 (Class1, Div2 A-D)• EN 60079-0, -15 ATEX certificate (Class 1, Zone2 A-D)• IEC 60079-0, 15 (report only)• UL 60079-0, 15• CAN/CSA C22.2 No. 60079-0, -15* Cabinet enclosure requiredEMC Emissions and Immunity Compliance  • FCC 47 CFR Part 15 Class A• EN 55022/CISPR 22 Class A• EN 55016-1-1, -1-4, -2-3 Class AVCCI Class A• RoHS compliance• AS/NZS CISPR 22 Class A, AS/NZS CISPR 24• CISPR11 Class A, CISPR22 Class A• ICES 003 Class A• KCC Marking (Korea)• CE Marking• RCM Marking (Australia/New Zealand)• EAC Marking (Eurasian Conformity)• Anatel (Brazil)• China NAL• IEC/EN/EN61000-4-2 (Electro Static Discharge), 8kV air/6kV contact• IEC/EN 61000-4-3 (Radiated Immunity, 10 V/m 80-2000MHz, 3V/m 2000-2700MHz)• IEC/EN 61000-4-4 (Fast Transients - 2kV DC power, 2kV data line, 4kv earth)• IEC/EN 61000-4-5 (Surge 2 kV/1 kV DC power, 2 kV shielded and unshielded data line)• IEC/EN 61000-4-6 (Conducted Immunity, 10 V/emf 0.15-80MHz)• IEC/EN 61000-4-8 (Power Frequency Magnetic Field Immunity 30A/m 60 sec, 300A/m 3 sec)• IEC/EN 61000-4-9 (Pulse Magnetic Field Immunity 300A/m)• IEC/EN 61000-4-29 (Voltage Dips Immunity)Shock and Vibration  • IEC 60068-2-27 (Operational Shock: 30G 11ms, half sine)• IEC 60068-2-27 (Non-Operational Shock 65-80G, trapezoidal)• IEC 60068-2-6, IEC 60068-2-64 (Operational Vibration)• EC 60068-2-6, IEC 60068-2-64, IEC 60068-2-47 (Non-operational Vibration)Industry Standard  • IEC/EN 61000-6-1 (Immunity for Light Industrial Environments)• IEC/EN 61000-6-2 (Immunity for Industrial Environments)• IEC/EN 61000-6-4 (Emissions for Industrial Environments)• EN 61131-2 (PLC Zone A & B, EMC/EMI, environmental, mechanical)• EN61326-1 (Industrial Controls)• Marine -TAC (Temp-A, Humid-B, Vib-A, EMC-A, Enc-A)• EN 50581 (RoHS)• China RoHS• EU WEEE• NEMA TS-2 (EMC, environmental, mechanical)• IP30Humidity • IEC 60068 -2-3• IEC 60068-2-30 (Test Db)• Relative humidity: 5% to 95% non-condensingOperating Temperature  • -40 °C to +70 °C (vented enclosure operating)• -40 °C to +60 °C (sealed enclosure operating)• -34 °C to +75 °C (fan or blower-equipped enclosure operating)• Operational altitude: Up to 13.8k ft• IEC 60068-2-1• IEC 60068-2-2• IEC 60068-2-56• -40 C to +85 C (storage temperature)• IEC 60068-2-14 (Test Nb)• Storage altitude: Up to 15,000 ftMean Time Between Failure (MTBF)• Meantime between failure: 374,052 hours (42.7 years)Warranty • Five-year limited warranty on all IE-1000 hardware PIDs and all IE power supplies defined in Table 2 previously. See the following link for details on warranty  Packaging & Shipping   FAQQ: How about your delivery time?A: Generally, it will take 3 to 5 days after receiving your deposit. The specific delivery time depends on the items and the quantity of your order.Large quantity will delivery faster.Q. Do you test all your goods before delivery?A: Yes, we have professional engineer to test all devices before shipping.Q: How do you make our business long-term and good relationship?A: 1. We keep good quality and steady price to ensure our customers benefit ;A: 2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from. Q: When can I get the price?A: We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please tell us in your email so that we will regard you inquiry priority.Q: What is your term of delivery?A: We accept EXW,  You can choose the one which is the most convenient or cost effective for youQ: What about warranty? A: year warranty for new products.3 months warranty for used products.Lifetime warranty for CIS CO small business series.Q:  How to place an order?A: After customer confirm the order , we will create an order as your request. We accept many terms of trade such as T/T, Western Union, Money Gram, PayPal.Q:  How about the shipment?A: We
