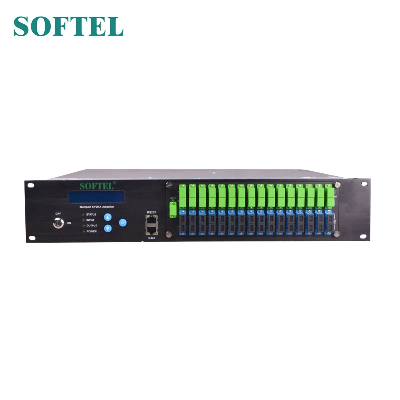

High Power CATV 1550nm 32 Ports EDFA Amplifier Each Output 20dB

High Power Multi Outputs Fiber Optic Amplifier Booster CATV EDFASummaryThis catv optical amplifier EDFA perfect APC, ACC and ATC control, excellent design in the ventilation and heat-dissipation ensure the long life and high reliable work of pump laser. RS232 and RJ45 offer serial commutation and SNMP network management port. All the optical port of 1550nm catv amplifier EDFA can be installed in the front panel (also can be in the back panel if customers specify). Softel 1550nm catv optical amplifier EDFA product, for its high quality, high reliable and high cost performance, is the ideal choice of the system integration and system operation. Product Display Characteristics1540~1563nm operating wavelength for optical amplifier 500~10000mW (27~40dBm) high output power Low noise subnumber ( Typ ≤ 4.5dB, Max ≤ 5.0dB ) High performance, high reliability 8~64 uplink optical port, used in OLT 8~64 1550nm output optical port, multiplex 1310/1490nm data stream Can be compatible with any FTTx PON Technology: EPON/GEPON, GPON, BPON, DPON Perfect RS232, SNMP Efficient space, flexible installation and easy operation Excellent P/P ratio IndexSupplementMin.Typ.Max.Optical featureOperating wavelength range(nm)1540 1563CATVInput power(dBm)-10 +7.5 Total output power 1)(dBm)27 321U28 372UNumber of output port(pcs)4 161U, SC/APC, LC/APC8 321U, LC/APC8 322U, SC/APC, LC/APC16 642U, LC/APCDifference of each output power(dB)-0.5 +0.5 Output power adjustable range(dBm)-6 0 Noise figure (Pin=0dBm)(dB) 4.55.0SOA5437Polarization dependence loss(dB)  0.3 Polarization dependence gain(dB)  0.4 Polarization mode dispersion(ps/nm)  0.3 Input/output isolation(dB)30   Pump power leakage(dBm)  -30 Echo loss(dB)55  APCGeneral featureSerial interface RS232 SNMP network management interface RJ45 Power supply(V)90 265220VAC30 72-48VDCPower consume(W)  150 Work temp.( °C )-5 65 Storage temp.( °C )-40 80 Relative humidity(%)5 95 Size (W) × (D) × (H)     19 × 14.3 × 1.75 ( " ) 483 × 363 × 44 ( mm )1RU (19") 19 × 14.7 × 3.5 ( " ) 483 × 373 × 89 ( mm )2RU (19")/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
