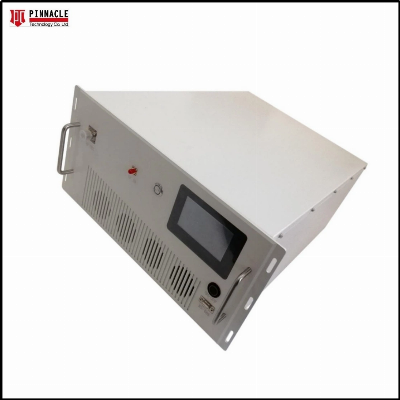

200W High Power Amplifier /RF Module/ Signal Amplifier 5600-6000MHz with Cabinet

Product DescriptionPTC-HPA200W is a  Solid State High Power Amplifier, we customized all Amplifiers as per each client's request, this model with Ultra-wide bandwidth and high power output for option. This model designed with 19'Standard Rack & 6U Height. Product ParametersELECTRICAL SPECIFICATIONS: 50, 25°C Parameter Specification Notes Operating Frequency Range 5700- 5800 MHz   Power Output @ Saturation 300 Watt Typ CW Power Output @ P1dB 200 Watt Min   Power Gain  54 dB Min Pin=0dBm for normal operation Power Gain Flatness 1.5-2 dB p-p Max Constant input power Pulse CharacteristicsWidth Duty PRF  100 nS             Input Return Loss  -10 dB Max Relative to 50 Ohm 2-Tone Intermodulation (IMD)  -30 dBc Typ 44dBm/Tone,  = 1MHz Noise Figure
