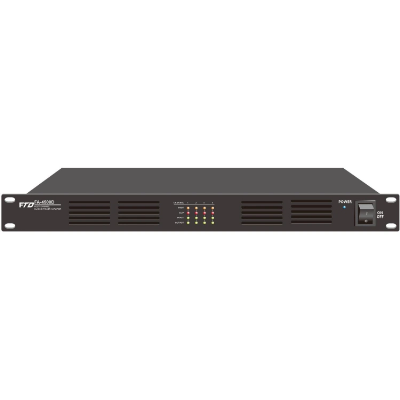

Two Channels High Power 1u Amplifier Class D Power Amplifier

FA-2120D2CH 120W Class-D Amplifier with DC24V and Auto standby, HPFFeatures:1.Switching power technology digital power amplifier2.Class-D PA power amplifier of minimum power consumption3.1RU height for less rack space and less heat generation4.Two channel power amplifier into 19" rack mount unit5.Rated power output at 2x120W6.Two channel separate speaker outputs 8ohms/100V7.Balanced line input by phoenix connector for two channels8.Each input with separate gain control.9.Each two channel with high-cut filter.10.Built-in auto standby feature to save power consumption11.Separate two channel indicators for protection, clip, input and output12.Complete short circuit, overload, high temp, clip and DC protection13.Wide AC input switchable between 115V and 230V14.24V DC input is optional.Description:The FA-2500D range digital class-D power amplifier is of switching power technology, which features of minimum power consumption and much higher efficiency up to 85%, moreover it helps to save installation rack space, generate less heat so as to extend its performance life span as a result.The FA-21200D  is of rated power output at 2×120W, so it could be used as two zone multiple sources public address system at minimum cost. The versatile loudspeaker outputs of both high impedance 100V & low impedance 8ohms enable it meet both PA fixed installation and Hi-fi stereo sound installation jobs.There are two balanced inputs by phoenix connector for each channel with gain control. Two separate zone speaker outputs both by 100V & 8ohms. The built-in two channel separate high-pass filters could be enabled or disabled through the dip switch pre-setting.Specification:  ModelFA-2120DFA-2240DFA-2350DFA-2500DDescriptionClass-D Two Channel  Power AmplifierRated Power Output2*120W2*240W2*350W2*500WSpeaker Output4-16ohms & 100VFrequency ResponseL/H Cut OFF 20Hz-20KHz (+1/-2dB)L/H Cut ON 70Hz-10KHz (+1/-3dB)Input0.775V, 0dBu, balanced phoenix connectorInput Impedance10K ohmsTHD80dBCrosstalk>60dB, 1KHz, Max outputPower Consumption300W550W800W1100WPower SupplyAC input switchable between 115V & 230V, 50-60Hz24V DC input as option at order request.Dimension482(W)x420(D)x44(H) mmWeight7.0kg7.5kg8KG8.5KGConnection Inlustraction:About us:  Guangzhou FTD Audio Limited is a leading manufacturer of Public Address System and Conference System in China, We are focus on R&D and our Professional R&D team already 15 years′ experience on Audio field. FTD audio will offer the professional products and service to each of partner and do a win win business with our partners!Our main products are Public address system ,EVAC system, IP PA system ,conference system ,PA amplifier and PA speaker.These system are all designed and produced by our engineer. We are accept OEM,ODM order.  Exhibition:  Certifications:FAQ:1. Are you manufacturer?Yes, we are public address system manufacturer located in Guangzhou, China.Welcome to visit our factory.2. Is sample order available? Is free sample available?Firstly, sample order is available. Secondly, for new clients, we will return the sample fee after big order placed. 3. What's your warranty period?Our warranty period is 12 months for speaker.  4. What's your payment terms?We accept Western Union and TT. 30% deposit in advance, balance 70% before shipment. 5. Where is your main market?Customers are mainly from Europe, Middle East  and South Asia.6. How many days do you need to prepare for  the goods?It takes 30 working days for large order.Shipment:/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
