4K@60Hz HDMI Switcher with 4 in 4 out

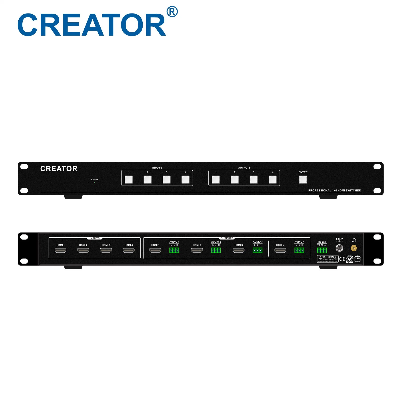

 Product Overview  CR-UHD0404 is a 4K HDMI matrix switcher with 4 inputs and 4 outputs, supports video resolution up to 4096*2160@60Hz and 4 HDMI unbalanced analog stereo audio outputs. Fast and accurate signal switching can be realized through front panel buttons control and RS-232 control.CR-UHD0404 matrix can be widely used in radio and television projects, multimedia conference halls, large-screen display projects, television teaching, command and control centers and other occasions. Features· Support 4 HDMI 2.0 signal inputs, 4 HDMI 2.0 signal outputs;· Support interface bandwidth 18gbps, support resolution up to 4096x2160@60_24bit, 3840x2160@ 60_24bit;· Support HDMI 2.0, HDCP2.2 or HDCP 1.4 (optional output HDCP on or off, the system default output HDCP state is off);· Support 4 de-embedding analog audio outputs (unbalanced stereo, 20Hz-20KHz);· Support front panel backlit buttons control and RS-232 control;· Support EDID management;· Support online firmware update and factory reset;· If there is no operation within 15 seconds, the switching state will be automatically saved. SpecificationsThe parameter name                                CR-UHD0404HDMI versionHDMI2.0, HDMI 1.4aHDCP versionHDCP 2.2, HDCP 1.4Video bandwidth18GbpsVideo resolution640x480x60Hz to 4096x2160x60HzHighest pixel clock600MHzInterfaceHDMI-A interface, 4 HDMI inputs, 4 HDMI outputs;4 unbalanced audio amplifier output with 3-pin Phoenix connectorsMin/max levelT.M.D.S.  2.9V/3.3VInput EDIDUse the system default EDID, (support terminal EDID mapping to input)Maximum DC offset error15mVRecommended maximum video input and output distanceInput is less than 7 meters; output is less than 7 meters, when transmitting 4096px2160@60 (recommended to use certified HDMI2.0 dedicated cable)HousingBlack metal Power consumptionStatic power consumption
