Seamless UHD Matrix Switcher with 8X HDMI Inputs and 8X HDMI Outputs

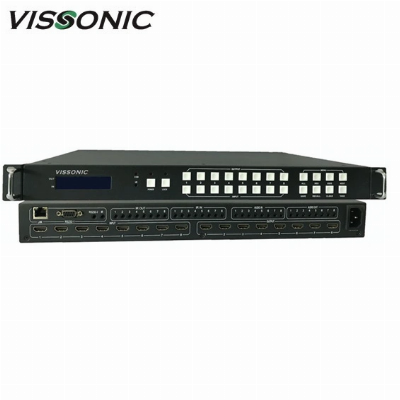

  Product Description VIS-UHD0808-VW is a high-performance seamless UHD matrix switcher with 8x HDMI inputs and 8x HDMI outputs. Audio extract or insert can also be enabled on this device. IR matrix routing on this video matrix is followed with video routing. VIS-UHD0808-VW support one or more video wall with RS232 commandFeatures Support HDMI 2.0/HDCP 2.2Support seamless switchingSupport video wallSupport IR matrixSupport HDMI audio extract Support external LR audio insert on HDMI streamSupport EDID managementHDMI video output resolution up to 3840x2160@60Front panel,RS232,TCP/IP (LAN 10M/100M), software & Web GUI control    Product Parameters Electrical parameterInterfaceHDMI-AHDMI /DP /VGA VersionHDMI2.0,HDCP2.2 Bandwidth18GbpsInput800x600@60Hz,1024x768@60Hz, 1280x768@60Hz,1280x800@60Hz,1280x1024@60Hz,1360x768@60Hz,1366x768@60Hz,1400x1050@60Hz,1440x900@60Hz,1600x1200@60Hz,1680x1050@60Hz, 1920x1200@60Hz,480p,576p,720p,1920x1080i,1920x1080p,3840x2160@24Hz/25Hz/30Hz/50Hz/60Hz,  4096x2160@24Hz/25Hz/30Hz/50Hz/60Hz.Output3840x2160@60Hz, 3840x2160@50Hz,3840x2160@30Hz, 3840x2160@25Hz,1920x1200@60Hz,1920x1080@60Hz, 1920x1080@50Hz,1600x1200@60Hz, 1400x1050@60Hz,1366x768@60Hz,  1360x768@60Hz, 1280x1024@60Hz,1280x768@60Hz, 1280x720@60Hz,  1280x720@50Hz, 1024x768@60HzHDMI AmplitudeT.M.D.S +/- 0.4VppDifferential impedance 100±15ohmRS232/Ethernet controlBaud rate and protocolBaud rate:9600, data bit:8,stop bit:1,no parity checkingEthernet IE10.0+,HTML5PowerMax Consumption100W, 110-240VACMatrix Mechanical dimensionsSize(mm)430(L)X300(W)X44 (H)Weight5KgOperating temperature0 to 40°C Storage temperature -20 to 70°C Permissible humidity10%-50%Company Profile  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
